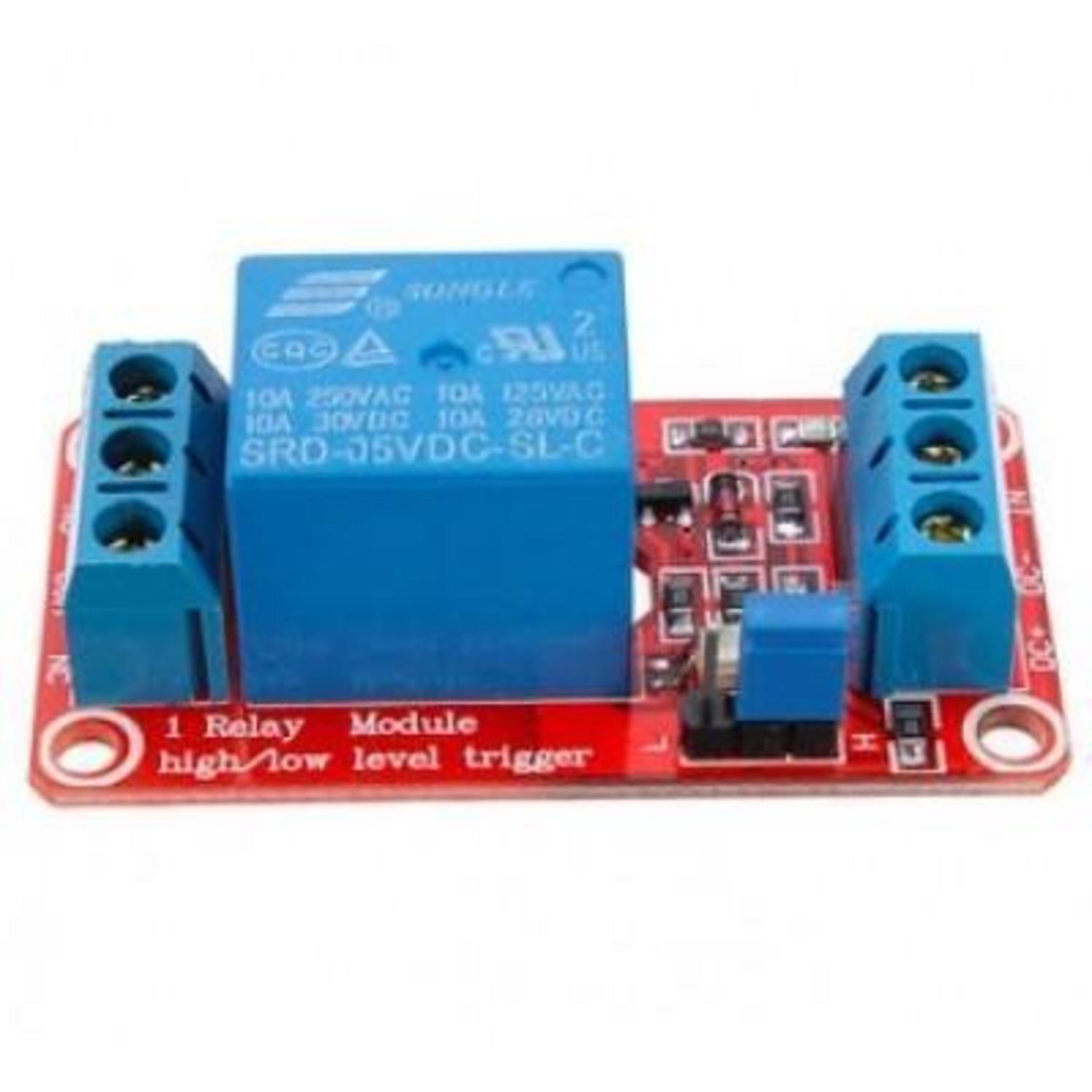

5V 1 Channel H/L Level Trigger Optocoupler Relay Module For Arduino
High quality relay. On board SMD optocoupler isolation. The module can be set high or low by a jumper setting trigger. With a fault-tolerant design, even if the control line is broken, the relay will not operate. Terminal lead connection.
Power indicator - Green
Relay Status - Red
Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA
Working voltage: 5V
Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm
Module interface:
DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay
Relay outputs:
NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface
High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin
