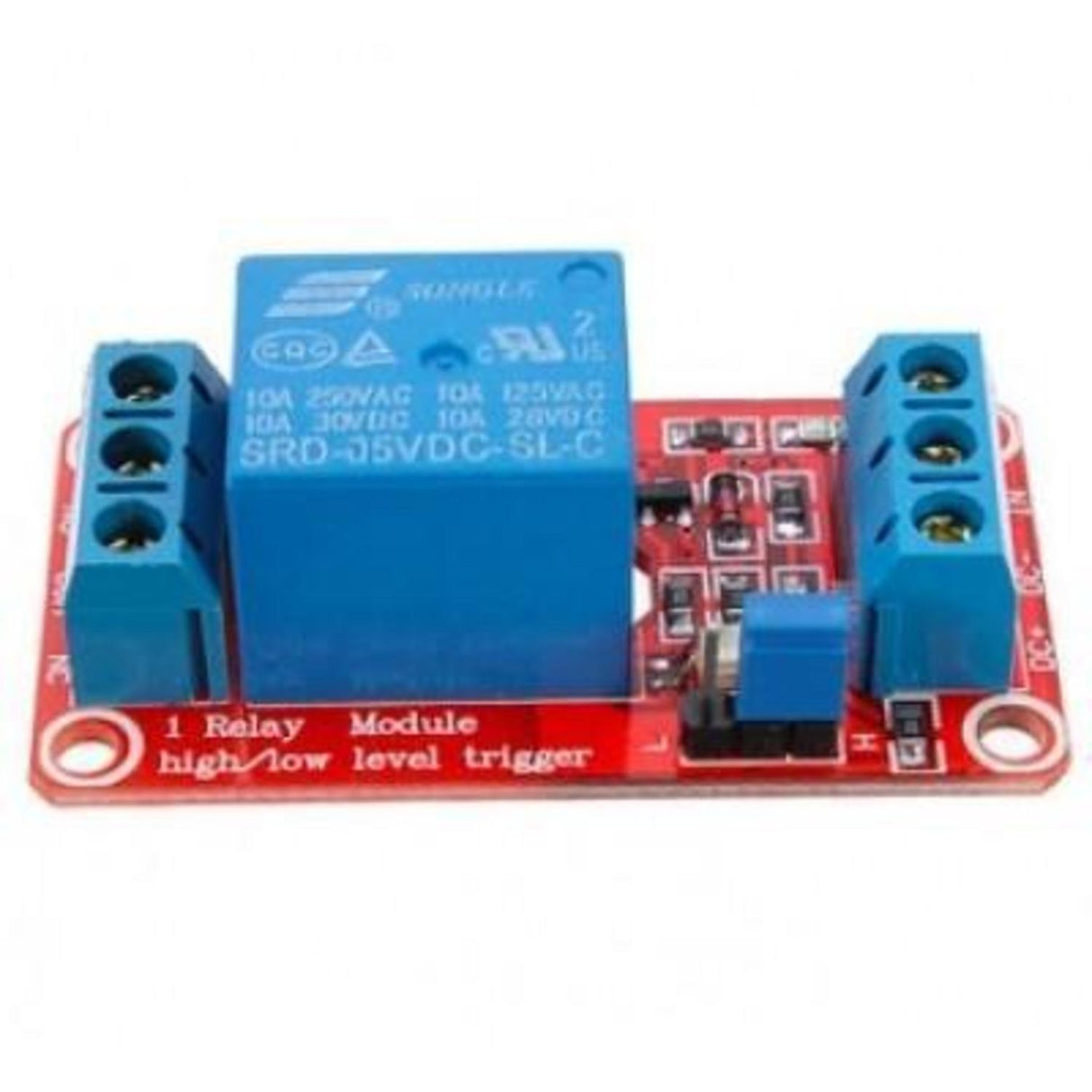

5V 1 Channel H/L Level Trigger Optocoupler Relay Module For Arduino

SKU: LB-LR0046
Price
$5
Taxes and shipping calculated at checkout

Got a Question?

Give us a call on 1300 240 817

Frequently Bought Together

No reviews

We Accept

American Express
Apple Pay
Generic
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Description

High quality relay. On board SMD optocoupler isolation. The module can be set high or low by a jumper setting trigger. With a fault-tolerant design, even if the control line is broken, the relay will not operate. Terminal lead connection.


Power indicator - Green

Relay Status - Red


Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA
Working voltage: 5V
Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm

Module interface:

DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay

Relay outputs:

NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface

High and low level trigger options:

It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin
