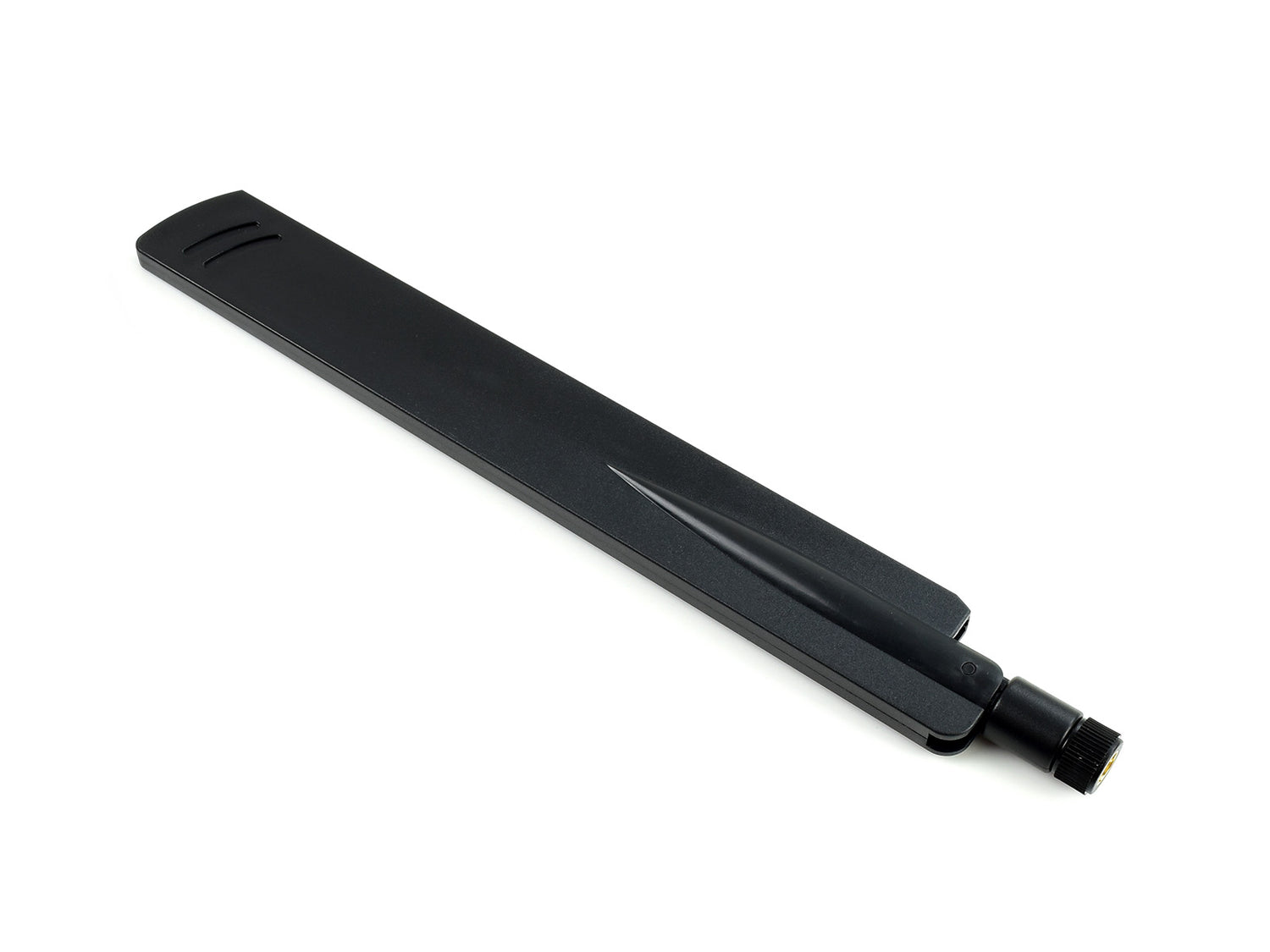

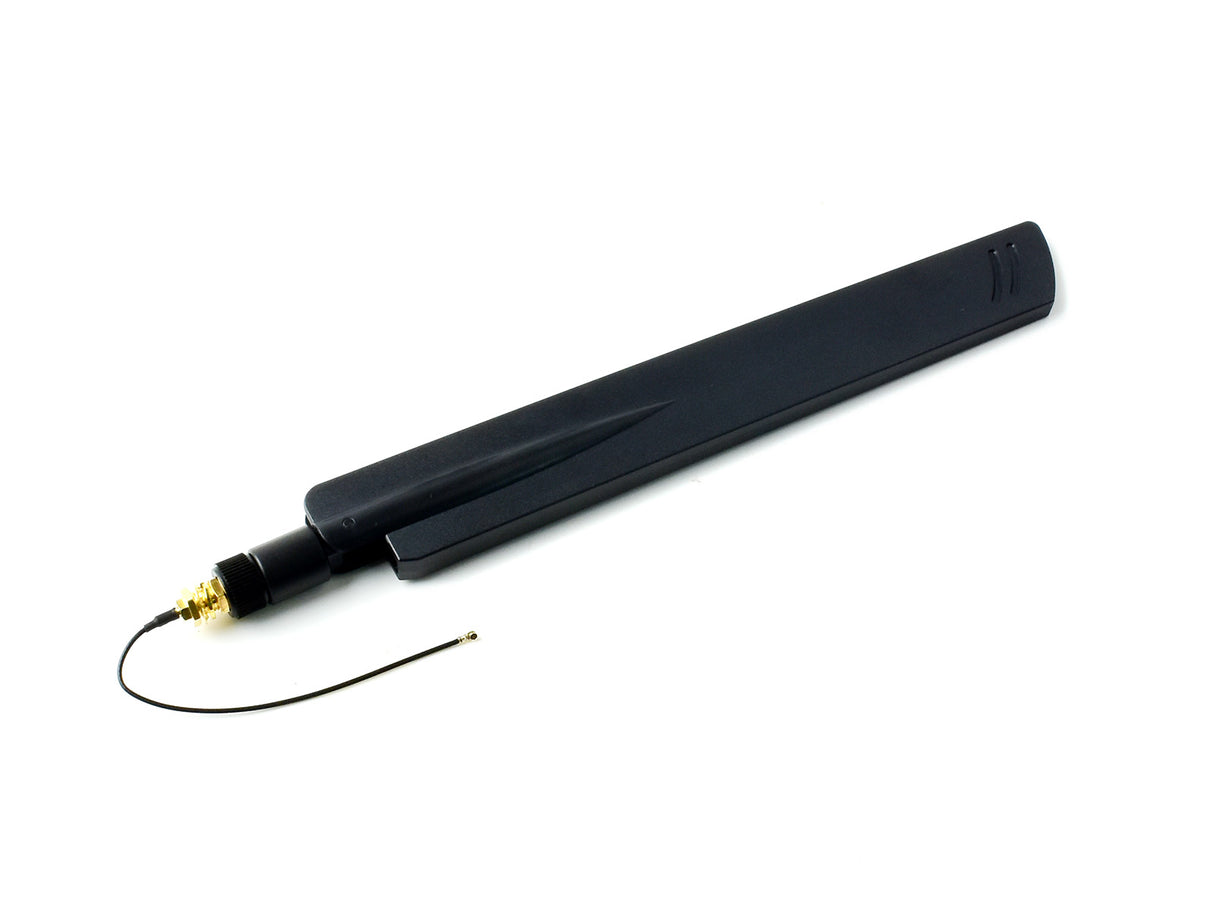

5G Omni-Directional High Gain Antenna with SMA to IPEX-4 Connector
- Versatile Compatibility: Fully compatible with the latest 5G communication modules, this antenna also supports 4G, 3G, and GNSS networks, making it a flexible solution for various devices and applications.
- High Gain for Superior Range: With an impressive gain of 18dBi, the antenna offers extensive wireless coverage, ensuring reliable and steady connectivity even in environments with weak signal strength.
- Omni-Directional Radiation: Experience consistent signal quality in all directions with the antenna's omni-directional emission, eliminating the need for orientation adjustments.
- Premium Build Quality: Constructed from durable ABS material, the antenna is built to withstand diverse operating conditions, ranging from -20˚C to +85˚C, ensuring longevity and reliability.

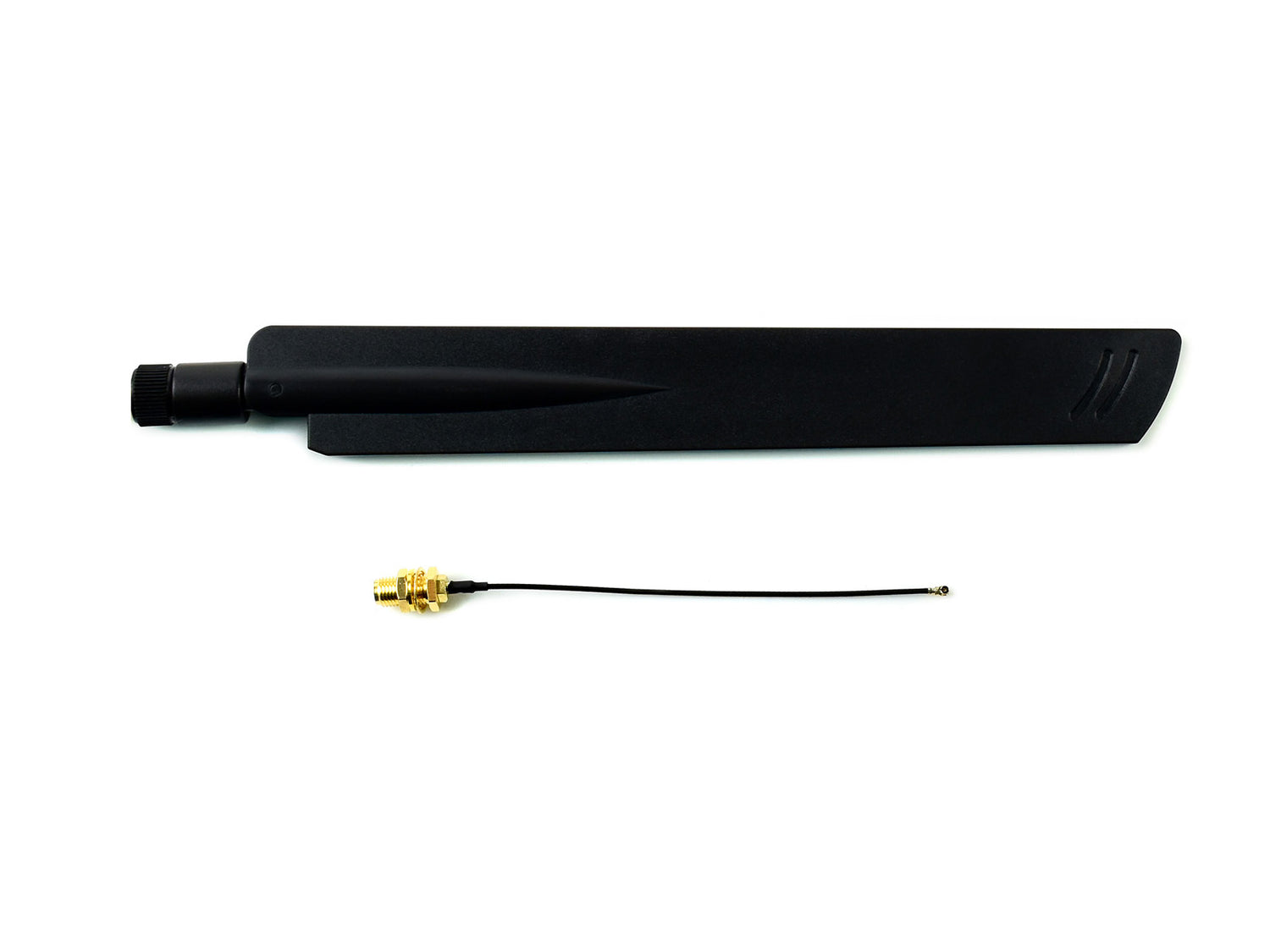

- SMA to IPEX-4 Connectors: Featuring an SMA needle inside the connector and a flexible connection wire leading to an IPEX-4 termination, this antenna offers secure and seamless integration with a variety of hardware including the SIM8202G-M2 5G module and Raspberry Pi 5G HAT.
- Optimized Design: Measuring 220 × 24 mm and weighing just 0.034 kg, the sleek and lightweight design ensures a minimal footprint while providing a powerful signal boost.
- Network Support: 5G/4G/3G/GNSS
- Output Impedance: 50 Ω
- Frequency Band: 600~6000MHz
- Connector Type: SMA (needle inside) to IPEX-4
- SWR: < 3.0
- Dimensions: 220 × 24 mm
- Polarization: Linear
- Material: ABS
- Operating Temperature Range: -20˚C to +85˚C
- 1 x 5G/4G/3G/GNSS External Antenna
