Pi Australia | SKU: KI-5609

Kitronik Prototyping System for the BBC micro:bit

Name: Kitronik Prototyping System for the BBC micro:bit
Brand: Pi Australia
SKU: KI-5609
Price: 25.56 AUD
Availability: OutOfStock

$25.56

Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

Standard Post: Starting at $7 (6+ business days, with tracking)
Express Post: Starting at $11 (2+ business days, with tracking)
Same Day Delivery: Available for Sydney orders.
Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

Please Note: BBC micro:bit, 2 x AAA Battery Cage and 2 x AAA Batteries are NOT included. If you also require a BBC micro:bit, you can order one here.

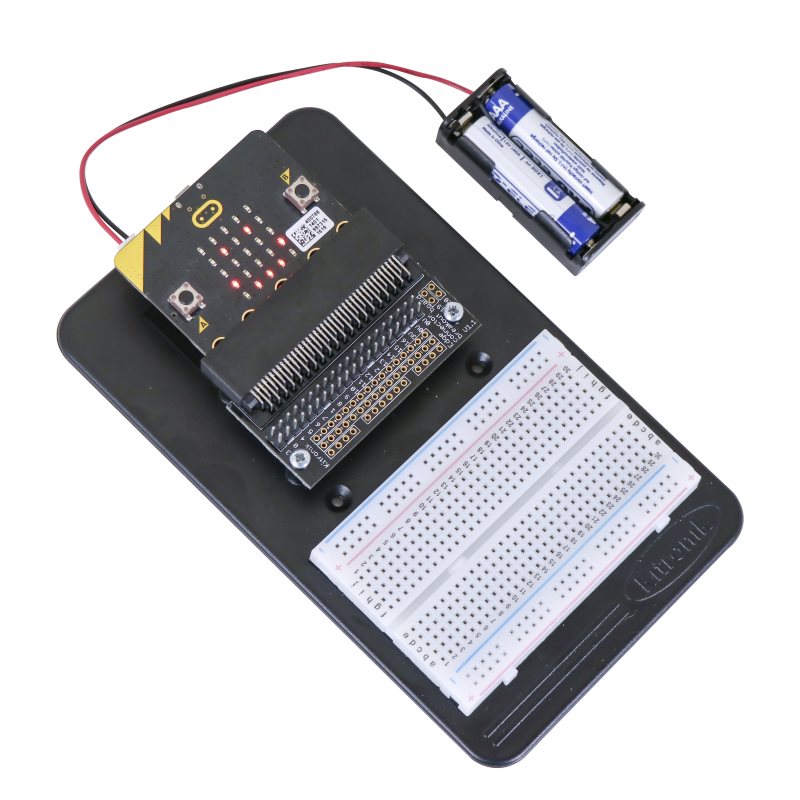

This Prototyping System for the BBC micro:bit is a great way to start making circuits and making experiments without the need to solder.

This prototyping system uses our specially designed Edge Connector Breakout Board for BBC micro:bit that gives full access to the pins on the bottom of the BBC micro:bit. The BBC micro:bit pins are broken out to a row of pin headers, the SCL and SDA pins are separated at the edge of the board providing easy identification. The PCB includes a prototyping area with 3V, 0V and unconnected rows that can be soldered to. This allows easy connection of switches, sensors and any pull-up or pull-down resistors etc. as required.

This prototyping system is used in conjunction with a Small Prototype Breadboard. This makes it easy to connect additional components using the included jumper wires. No soldering required.

Please Note: BBC micro:bit is NOT included.

Note:

This kit requires assembly.

Features:

No soldering is required.
Breaks out 21 pins from the BBC micro:bit using the Pre-built Edge Connector Breakout Board for BBC micro:bit.
Small Prototype Breadboard included so you can use additional components.
Run your own custom code from your BBC micro:bit to interact with external components.

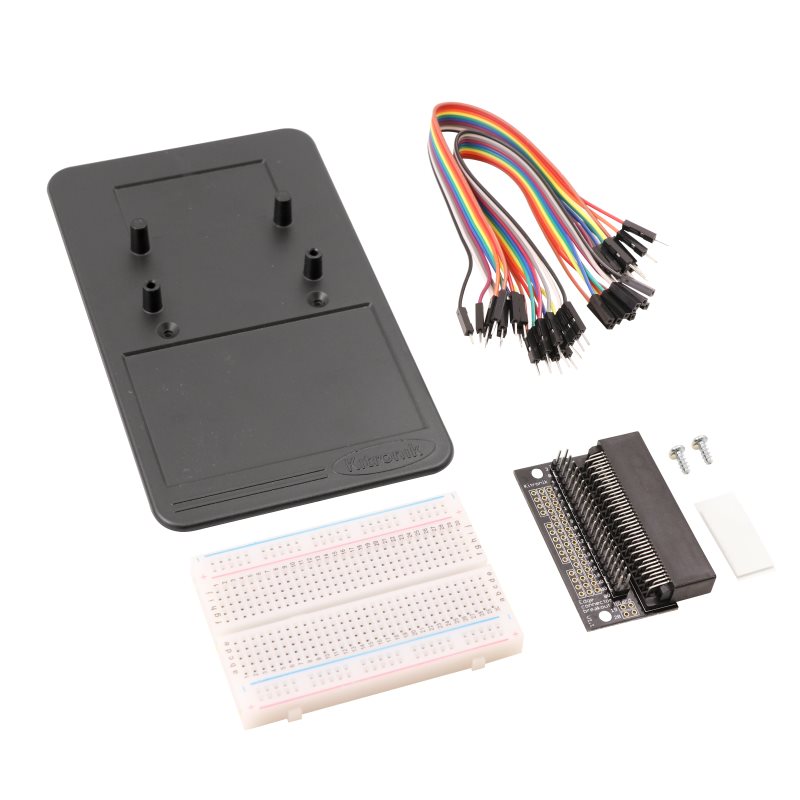

Contents:

4 x Pan Head M3 Machine Screws.
1 x Small Prototype Breadboard.
10 x Jumper Wires Male to Male.
10 x Jumper Wires Male to Female.
1 x Mounting Plate.
1 x Edge Connector Breakout Board for BBC micro:bit - Pre-built.

Video:

Requires:

1 x BBC micro:bit.
1 x Phillips Screwdriver.

Resources:
