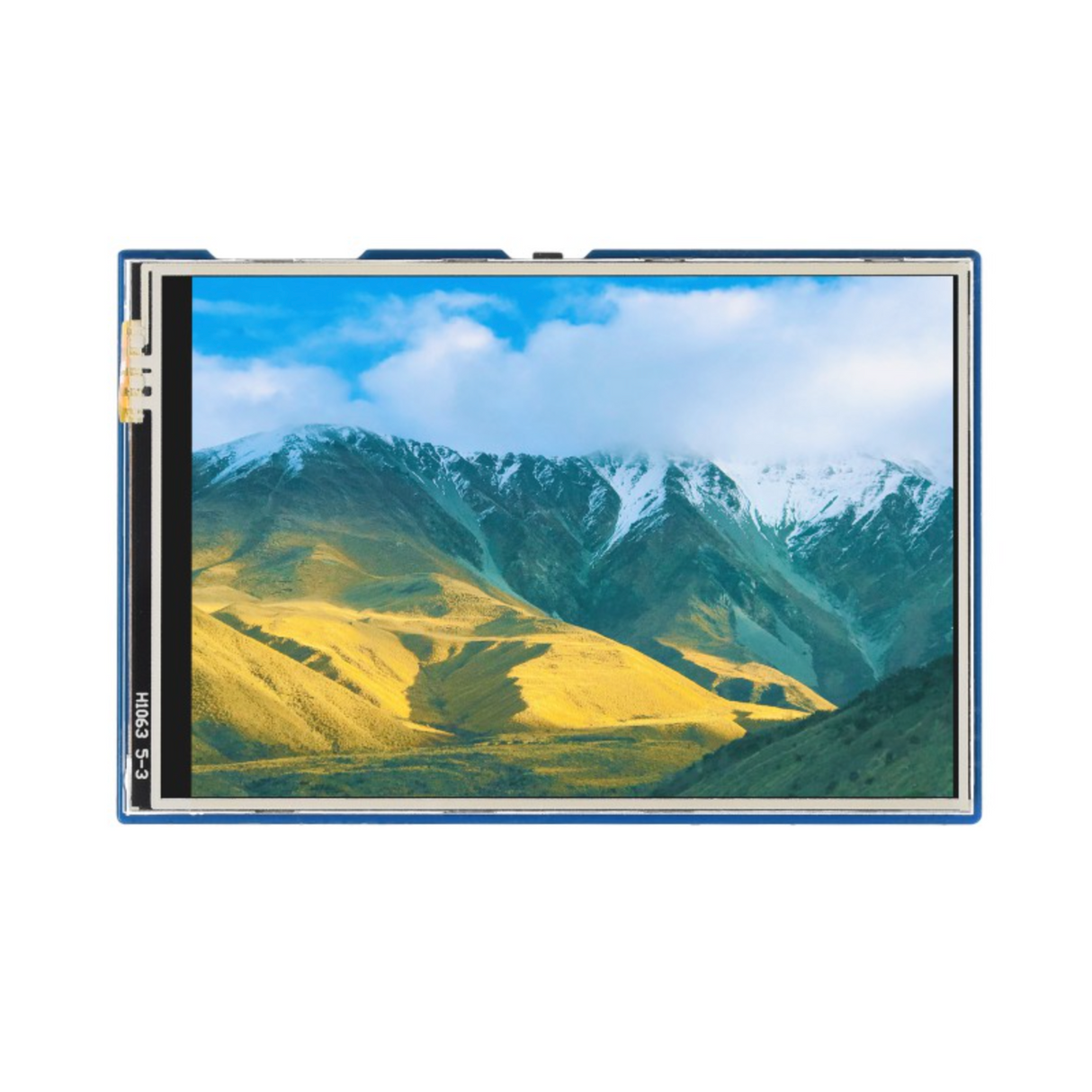

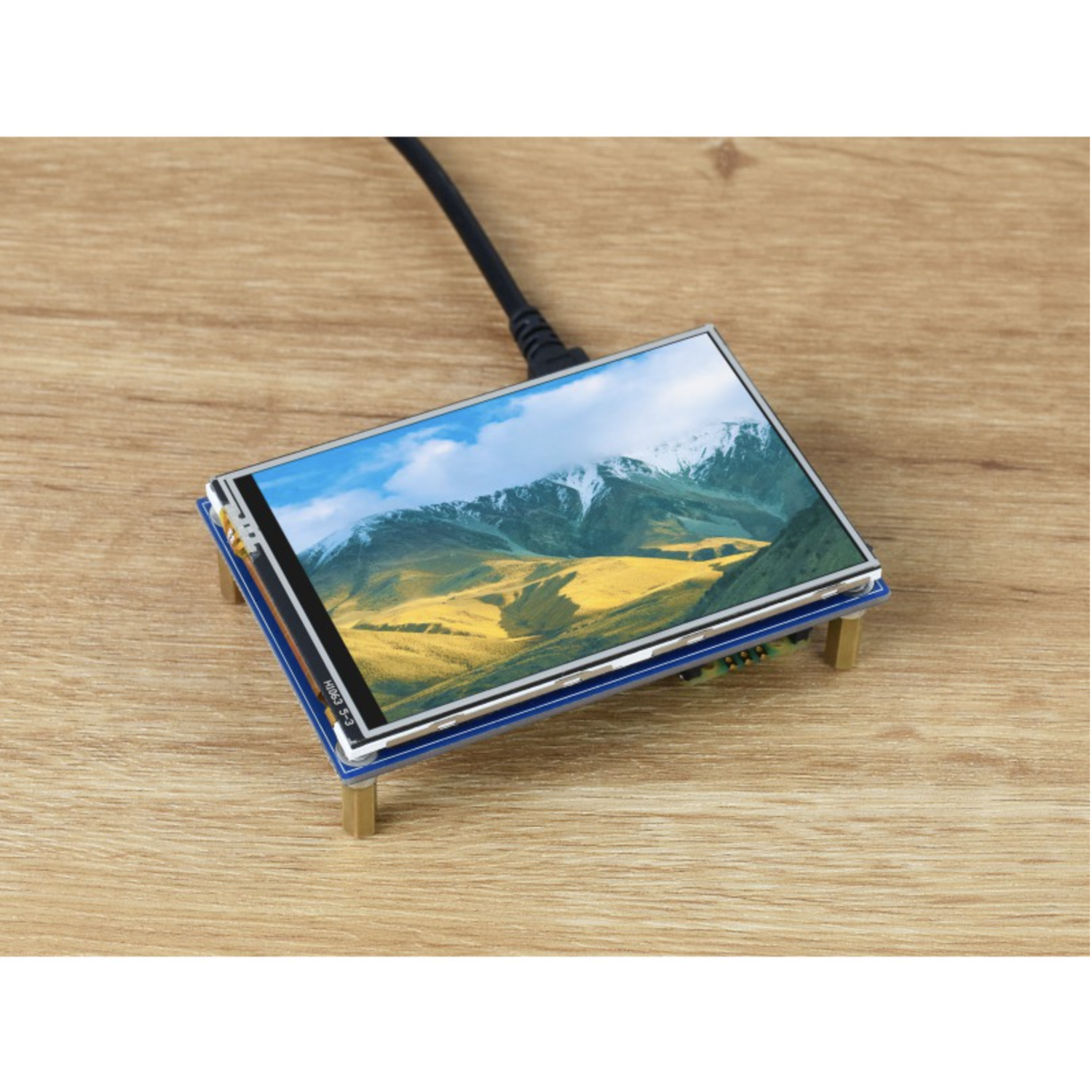

3.5inch Touch Display Module for Raspberry Pi Pico, 65K Colours, 480×320, SPI

SKU: WS-19907
GST included. Shipping calculated at checkout.

Got a Question?

Give us a call on 1300 240 817

Frequently Bought Together

We Accept

American Express
Apple Pay
Google Pay
Shop Pay
Union Pay


3.5" Touch Display Module For Pico

Resistive Touch Controller XPT2046, ILI9488 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

  • Size3.5"
  • Resolution480×320
  • Display Color65K Colors
  • Display PanelIPS
  • Touch TypeResistive
  • InterfaceSPI
  • Driver/ControllerILI9488/XPT2046

Features At A Glance

  • 480×320 resolution, IPS screen, 65K colors, clear and colorful displaying effect
  • Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
  • MicroSD card slot for storing images and direct displaying them easily
  • Programmable backlight control, power saving
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)



5V 480×320 pixels
SPI 73.44 × 48.96 mm
IPS 0.153 × 0.153 mm
ILI9488 86.00 × 57.20 mm

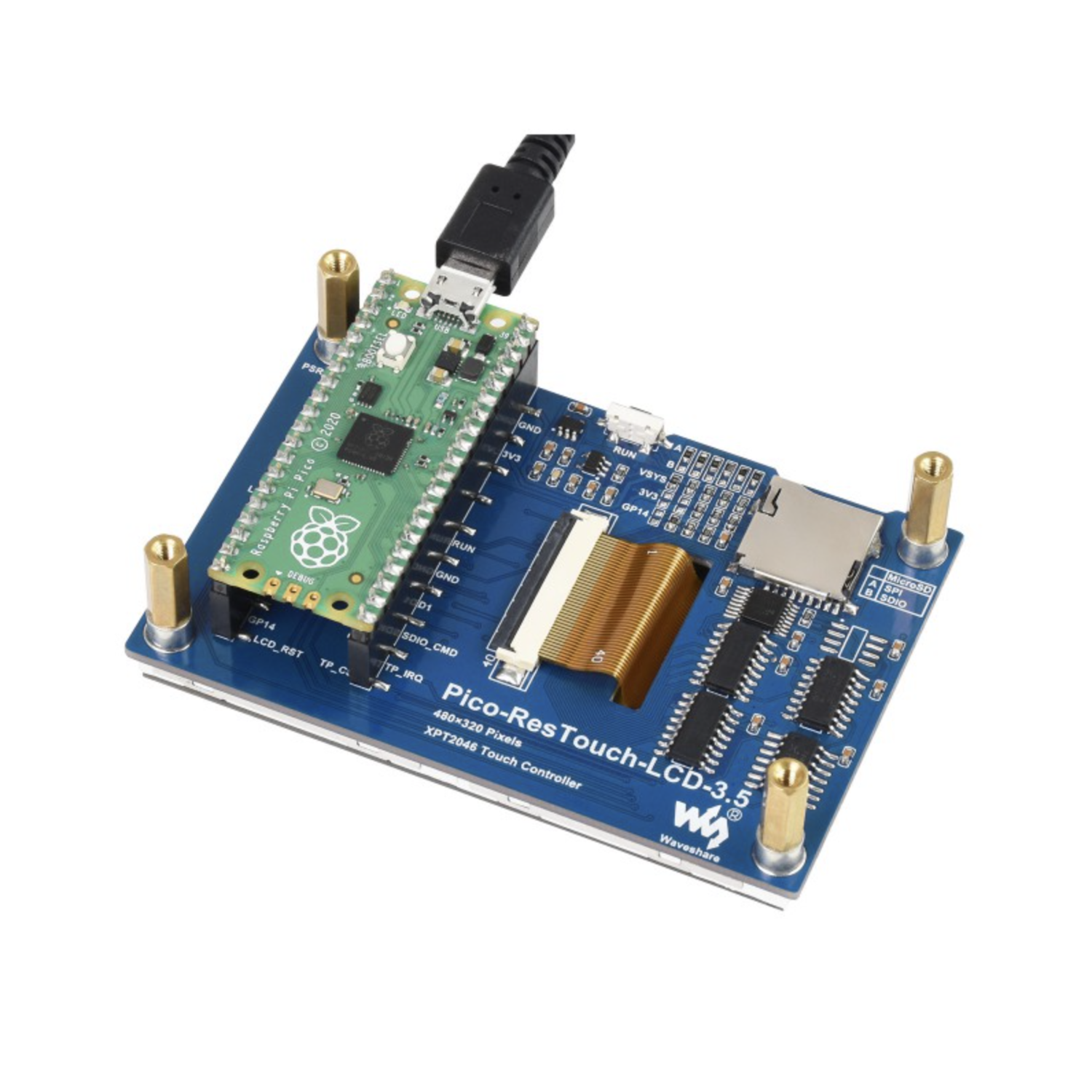

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

What's On Board

  1. Rapsberry Pi Pico header
  2. CAT6219
    LCD backlight power chip
  3. RT9193-33
    3.3V linear voltage regulator
  4. Pico reset button
  5. MicroSD card slot


  1. XPT2046
    resistive touch controller
  2. 74HC4040
    counter chip, for clock frequency division
  3. 74HC04D
    inverter chip
  4. 74HC4094
    serial data to parallel data converter

Pinout Definition

Outline Dimensions
