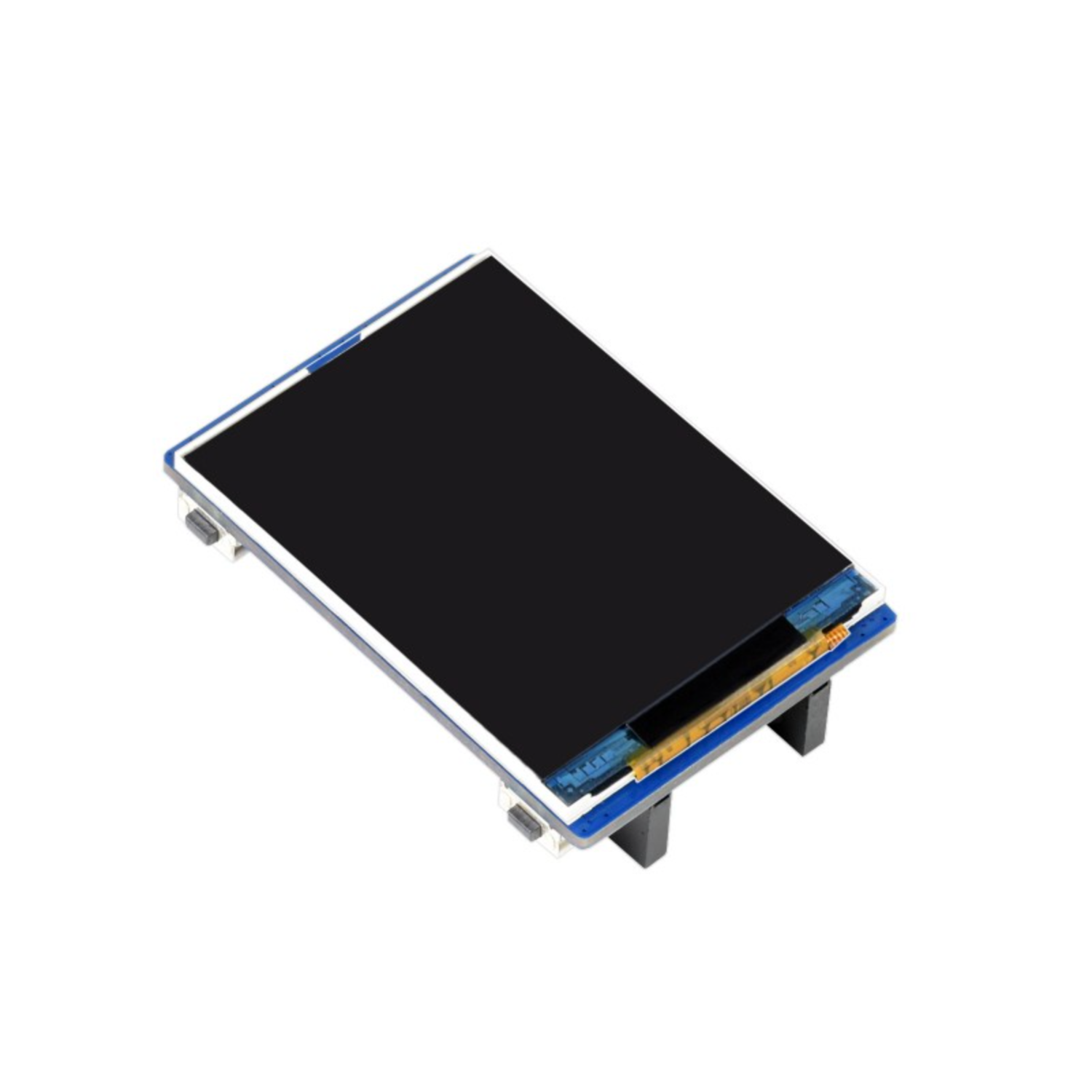

Introducing the 2" LCD Display Module designed for use with the Raspberry Pi Pico.
Key Features:
- Equipped with the embedded ST7789VW Driver
- Utilizes the SPI Bus for communication
- Includes Raspberry Pi Pico C/C++ and MicroPython Demo for straightforward integration and testing.
- Size
2" - Resolution
320×240 - Display Color
65K RGB - Interface
SPI - Display Panel
IPS - Driver
ST7789VW
Features At A Glance
- 320×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 4x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGERESOLUTIONCOMMUNICATION INTERFACEDISPLAY SIZEDISPLAY PANELPIXEL SIZEDRIVERDIMENSIONS
| 2.6 ~ 5.5V | 320×240 pixels |
| 4-wire SPI | 40.80 × 30.60mm |
| IPS | 0.1275 × 0.1275mm |
| ST7789VW | 52.00 × 35.00mm |
Raspberry Pi Pico Header Compatibility

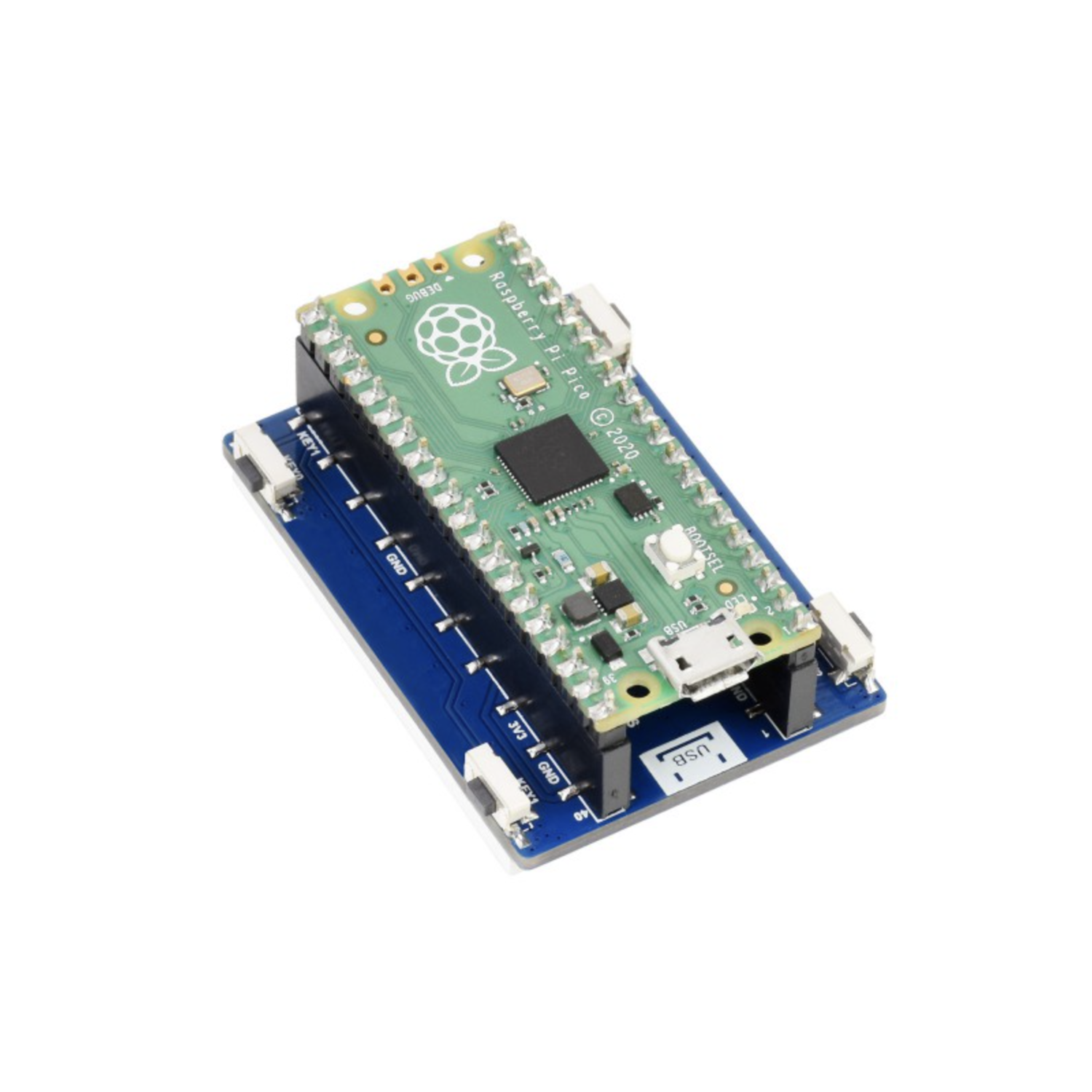

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
4x User Buttons For Easy Interacting
Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions
Resources & Services
WIKI: Pico-LCD-2
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
