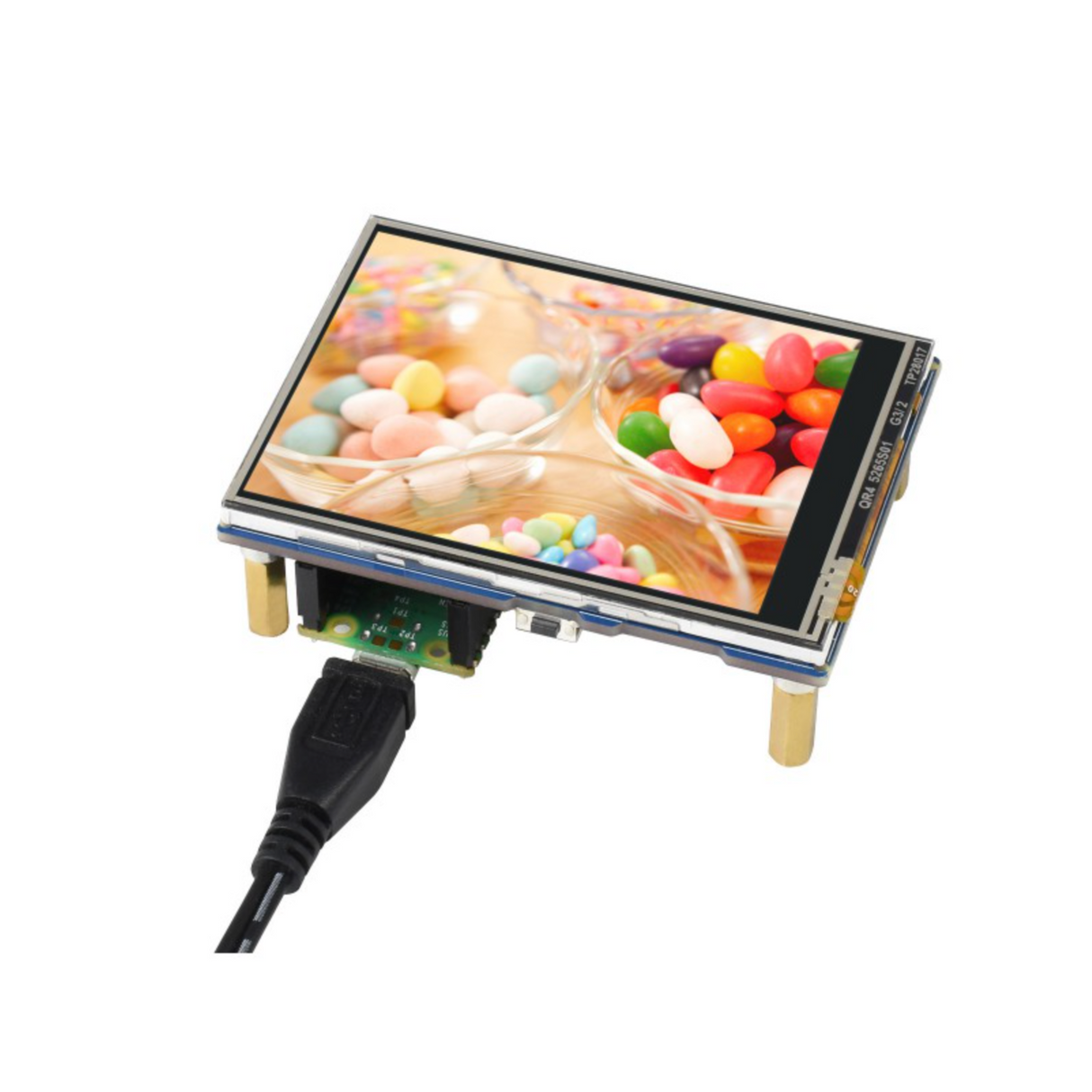

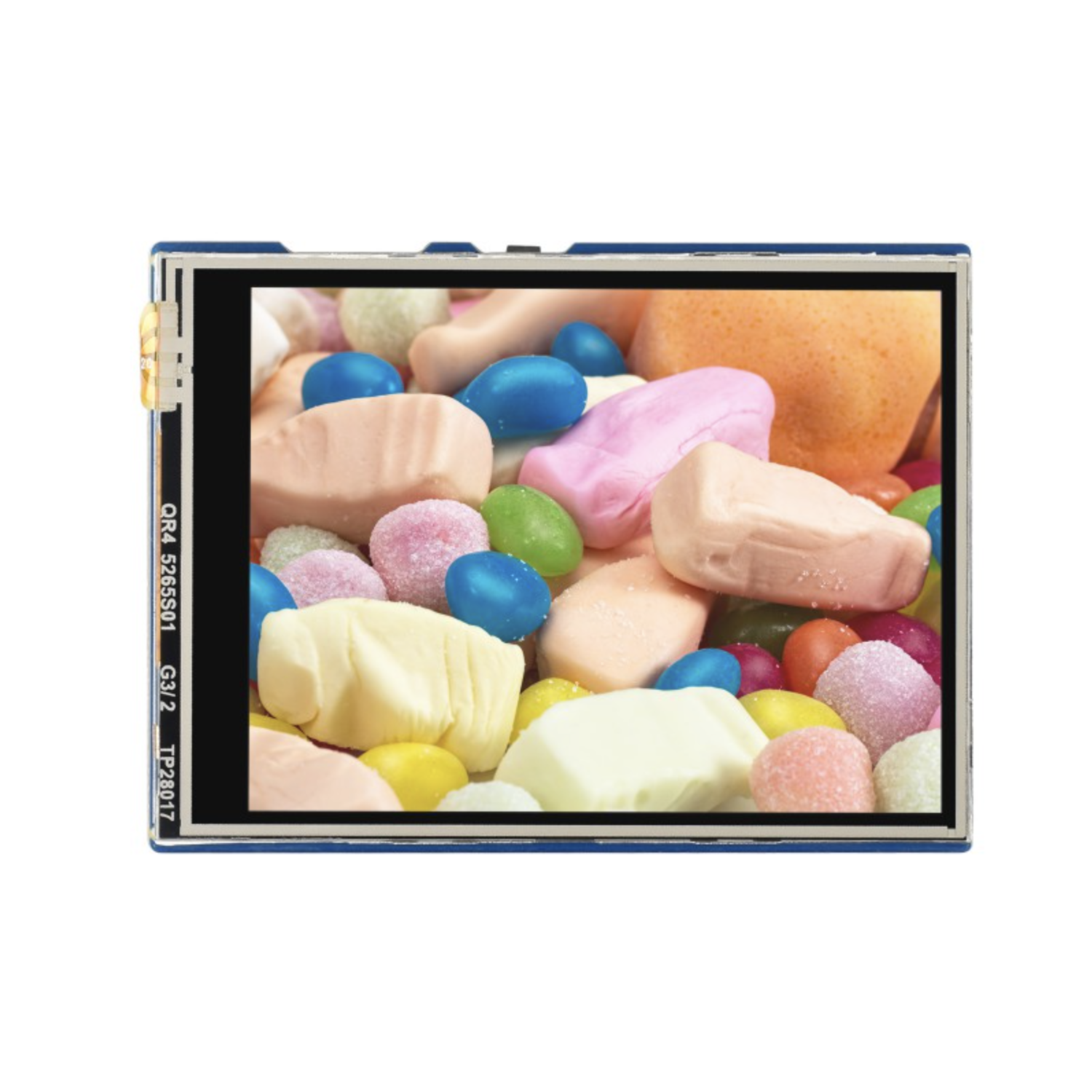

2.8" Touch Display Module For Pico
Resistive Touch Controller XPT2046, ST7789 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
- Size
2.8" - Resolution
320×240 - Display Color
262K Colors - Display Panel
IPS - Touch Type
Resistive - Interface
SPI - Driver/Controller
ST7789/XPT2046
Features At A Glance
- 320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
- Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
- MicroSD card slot for storing images and direct displaying them easily
- Programmable backlight control, power saving
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGERESOLUTIONCOMMUNICATION INTERFACEDISPLAY SIZEDISPLAY PANELPIXEL SIZEDRIVERDIMENSIONSTOUCH CONTROLLER
| 5V | 320×240 pixels |
| SPI | 57.60 × 43.20 mm |
| IPS | 0.18 × 0.18 mm |
| ST7789 | 70.20 × 50.20 mm |
| XPT2046 |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included.

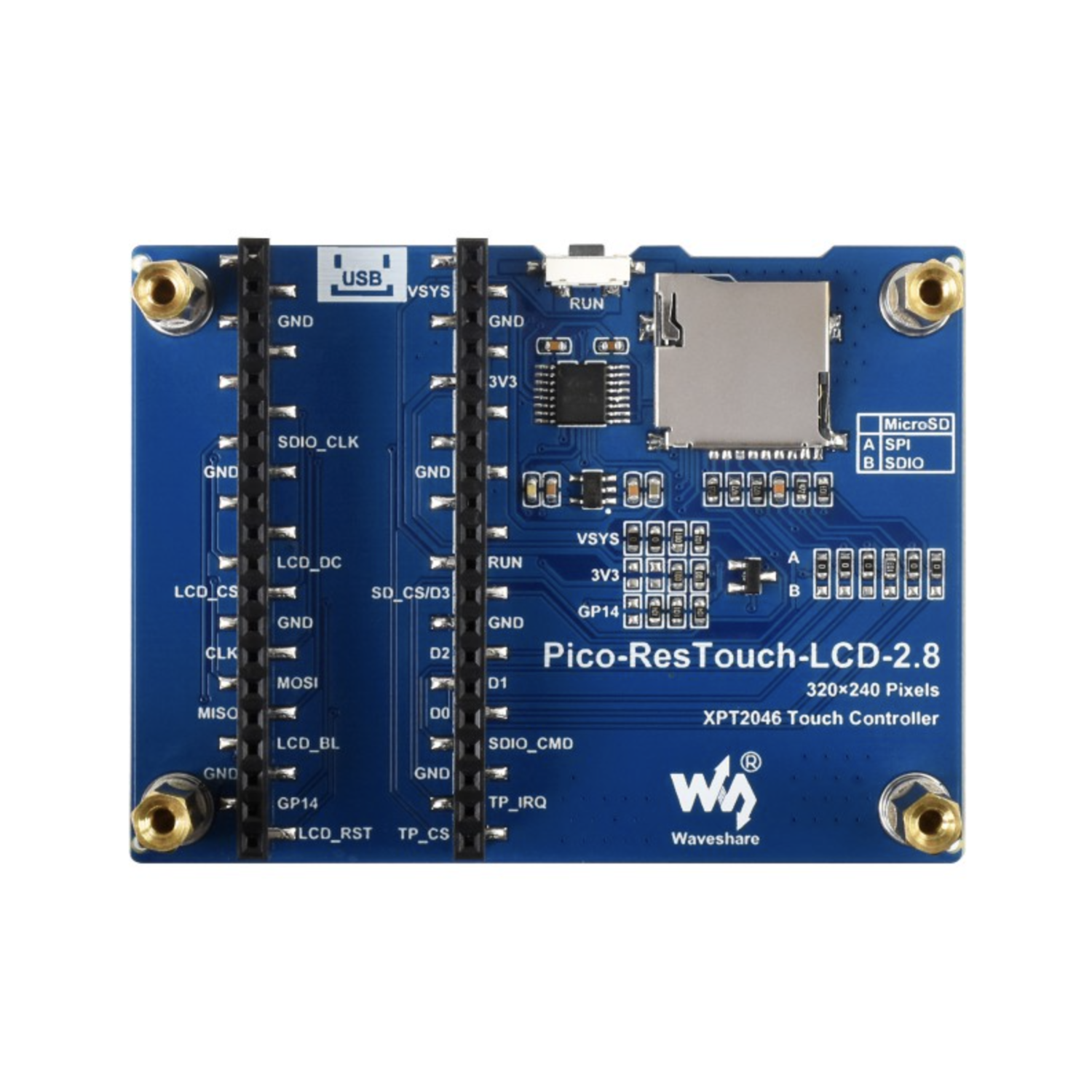

What's On Board
- Rapsberry Pi Pico header
- MicroSD card slot
- XPT2046
resistive touch controller - RT9193-33
3.3V linear voltage regulator - Pico reset button
Pinout Definition
Outline Dimensions
Resources & Services
WIKI: Pico-ResTouch-LCD-2.8
2.8inch Touch Display Module for Raspberry Pi Pico, 262K Colors, 320×240, SPI
We have 11 units in our Sydney Warehouse available for immediate dispatch.
| Raspberry Pi Model Compatibility | ||
|---|---|---|
| RP4 |
|
Doesn't with Raspberry Pi 4 Model B |
| RP3A+ |
|
Doesn't with Raspberry Pi 3 Model A+ |
| RP3B+ |
|
Doesn't with Raspberry Pi 3 Model B+ |
| RP3B |
|
Doesn't with Raspberry Pi 3 Model B |
| RP2B |
|
Doesn't with Raspberry Pi 2 Model B |
| RP1B+ |
|
Doesn't with Raspberry Pi 1 Model B+ |
| RP1A+ |
|
Doesn't with Raspberry Pi 1 Model A+ |
| RP0W |
|
Doesn't with Raspberry Pi Zero W |
| RP0 |
|
Doesn't with Raspberry Pi Zero |
| RPCM3+ |
|
Doesn't with Raspberry Pi Compute Module 3+ |
