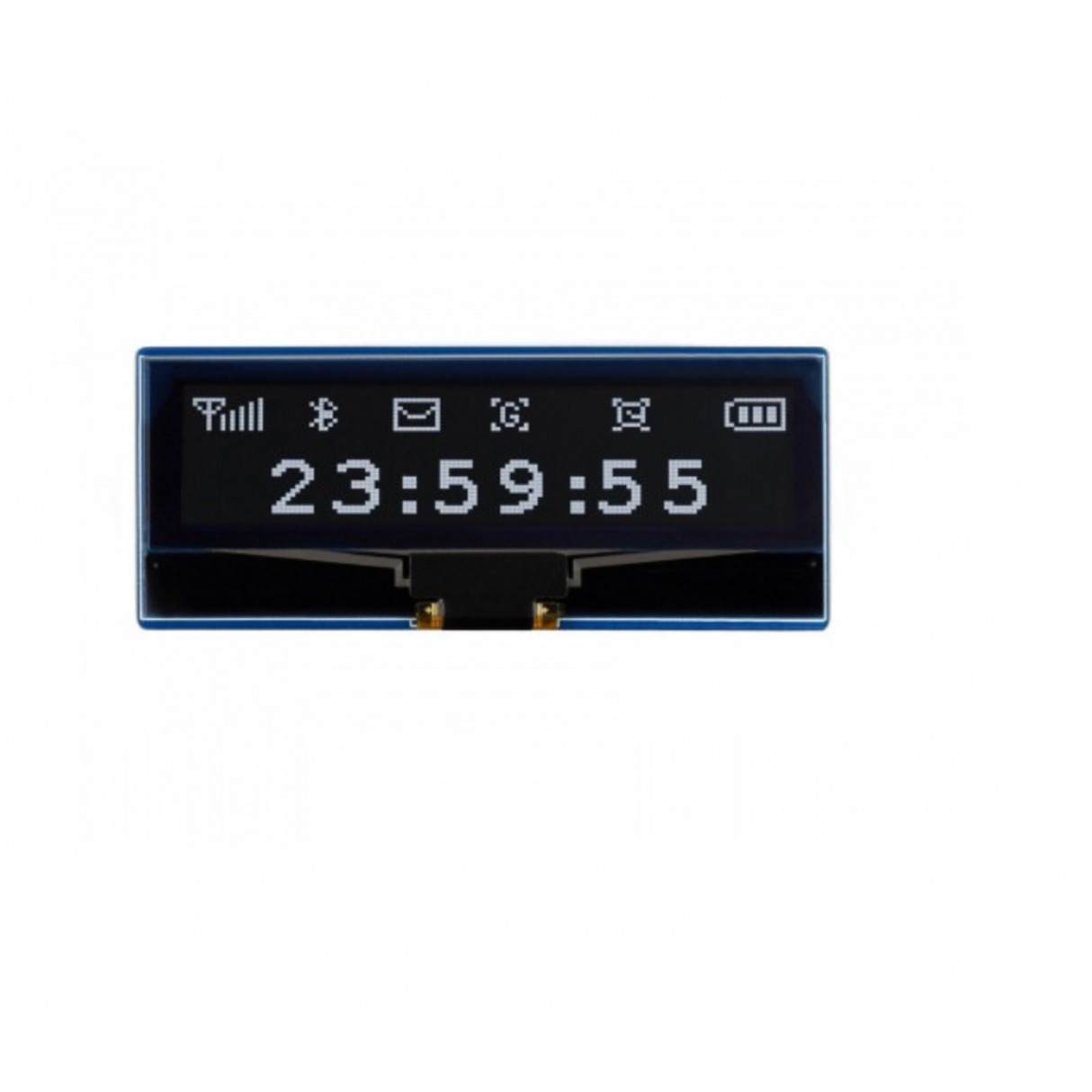

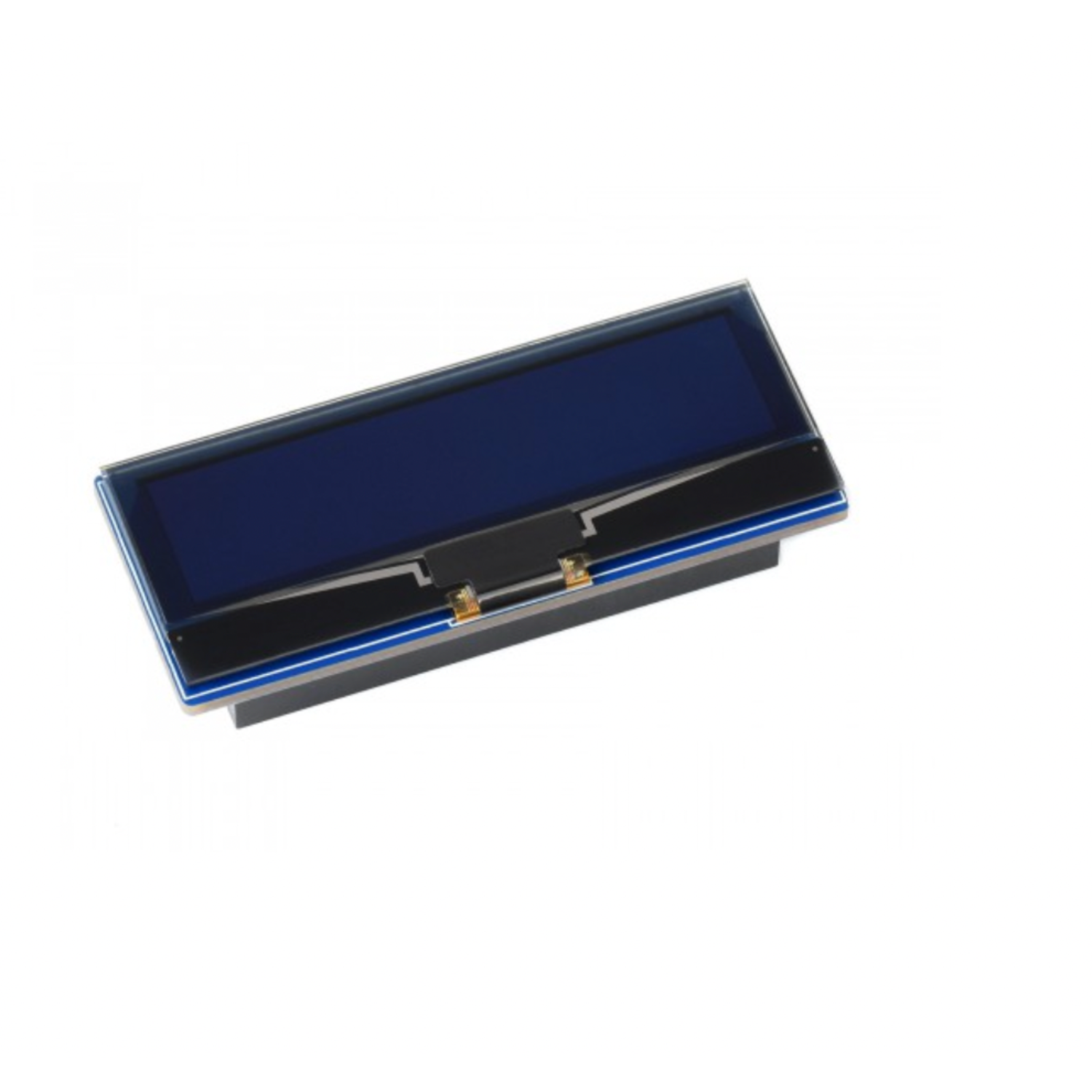

Introducing the 2.23" OLED Display Module designed for use with the Raspberry Pi Pico.
Key Features:
- Equipped with the embedded SSD1305 Driver
- Utilizes SPI/I2C bus for communication
- Includes Raspberry Pi Pico C/C++ and MicroPython Demo for easy integration and testing.
- Size2.23"
-
- Resolution128×32
-
- Display ColorBlack / White
-
- InterfaceSPI/I2C
-
- Display PanelOLED
-
- DriverSSD1305
Features At A Glance
- Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
LOGICAL VOLTAGEVIEWING ANGLEOPERATING VOLTAGERESOLUTIONCOMMUNICATION INTERFACEDISPLAY SIZEDISPLAY PANELPIXEL SIZEDRIVERDIMENSIONS
3.3V |
>160° |
3.3V/5V |
128×32 pixels |
4-wire SPI, I2C |
55.02 × 13.10mm |
OLED |
0.41 × 0.39mm |
SSD1305 |
63.00 × 26.00mm |

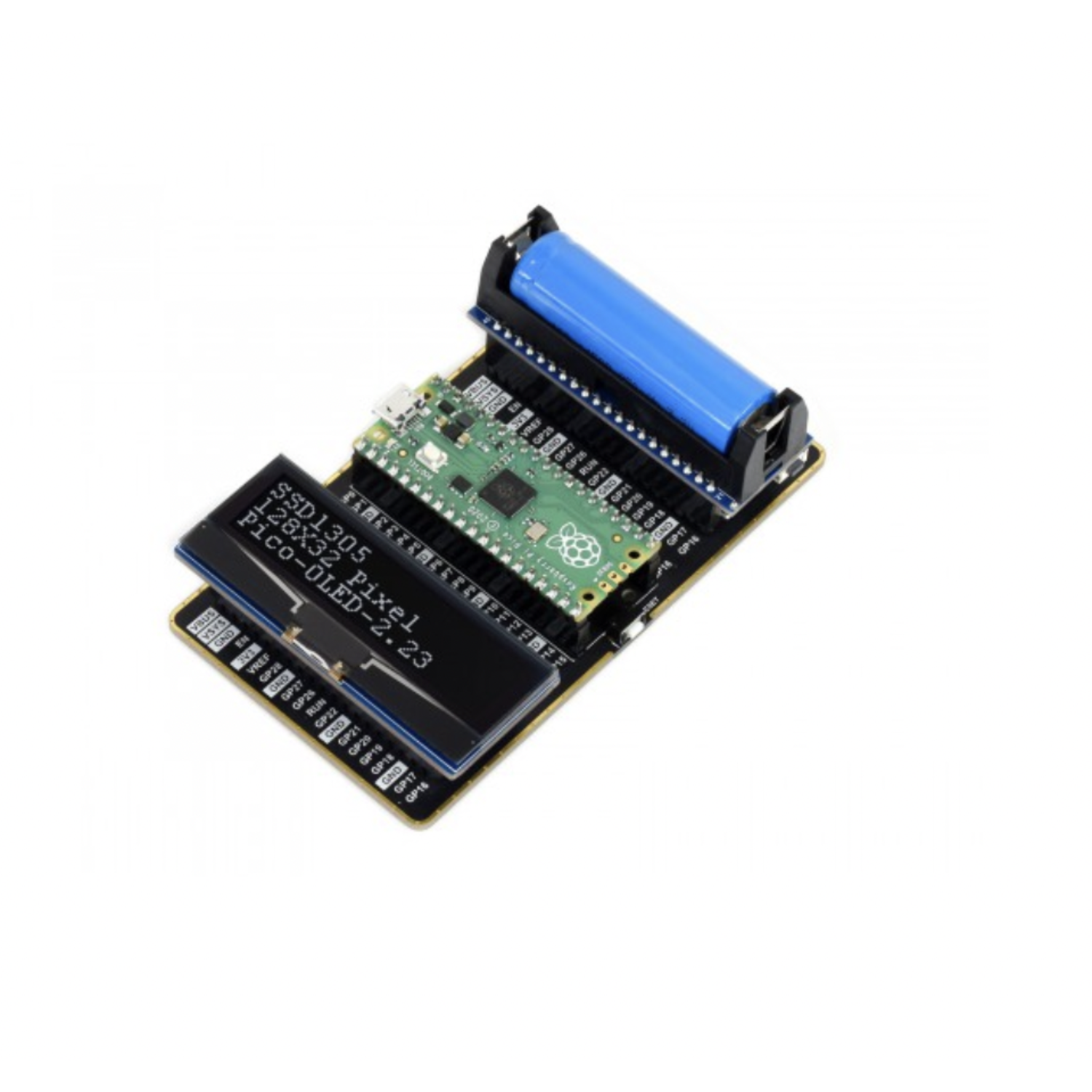

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions
Resources & Services
WIKI: Pico-OLED-2.23
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
