12V Precision Temperature Controller with 3 digit display 10Amp Relay

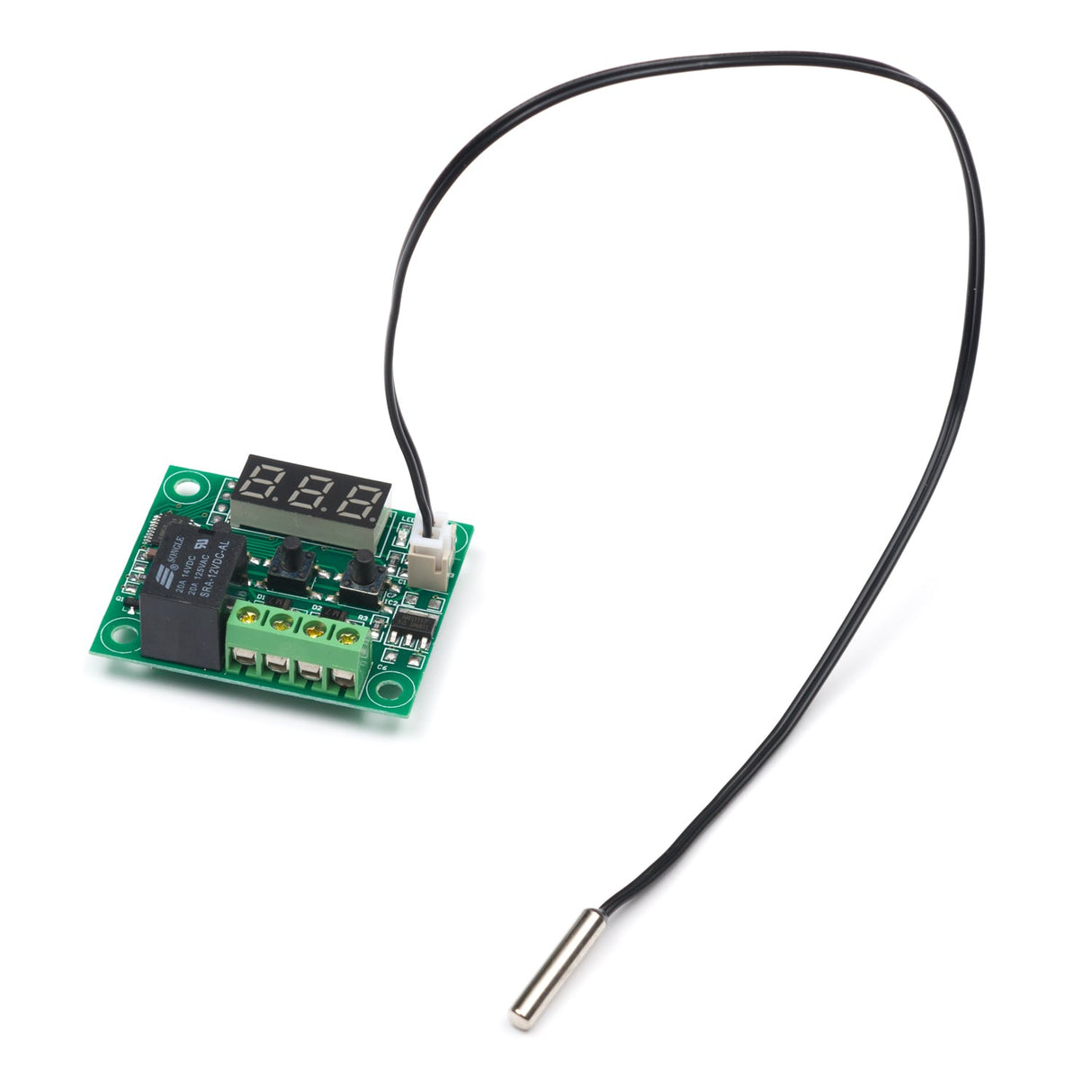

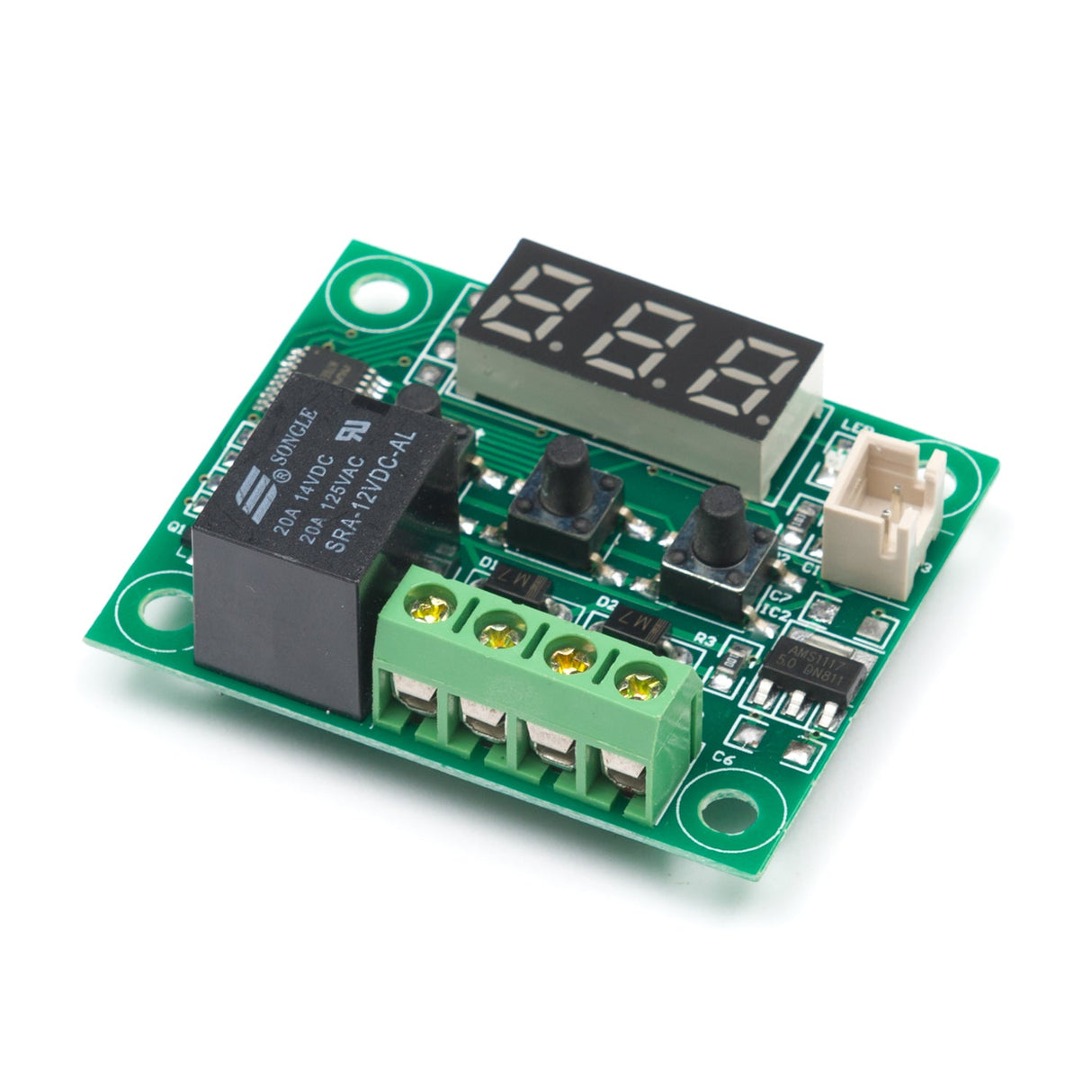

This temperature controller operates on a 12V power supply and is equipped with a 10-amp relay. It includes a 3-digit display for both temperature setting and readout. The relay is normally open, and it will close when the temperature exceeds the set temperature. The relay will only revert to its open state once the temperature falls 2 degrees Celsius below the set temperature.
Specifications:
- Temperature Accuracy: ±0.1°C
- Control Accuracy: 0.1°C
- Backlash Accuracy: 0.1°C
- Refresh Rate: 0.5 seconds
- Temperature Range: -50°C to 110°C
- High-Temperature Protection: 0°C to 110°C
- Input Power: DC 12V
- Temperature Sensor: NTC (10KΩ, 0.5%) Waterproof Sensor
- Operating Environment: -10°C to 60°C, Humidity: 20% to 85%
- Dimensions: 48.5mm x 40.1mm x 15.8mm
- Mounting Hole Size: 46mm x 26.5mm
- Power Consumption: Static Current ≤ 35mA, Pull Current ≤ 65mA
- Weight: 22.3 grams
This temperature controller offers precise temperature control with a high degree of accuracy and reliability.
We've put together some instructions here.
