10.1" IPS Capacitive Touch Screen with RGB Animated light compatible with Raspberry Pi

SKU: EC-CMS01101D
Price
$176.33
GST included. Shipping calculated at checkout.

Got a Question?

Give us a call on 1300 240 817

Frequently Bought Together

We Accept

American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Description

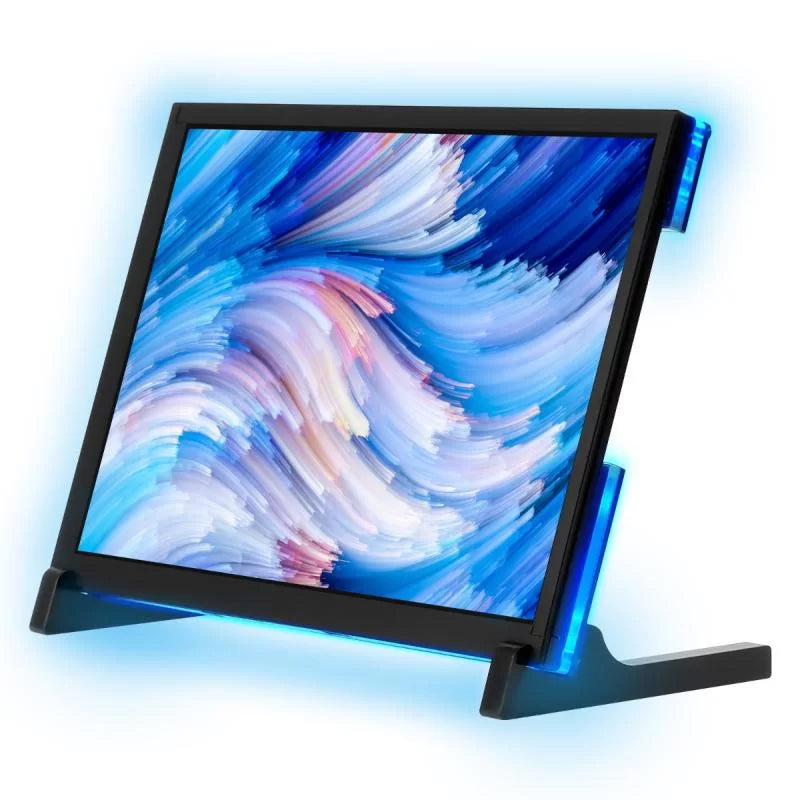

This 10.1-inch IPS HD touch display provides resolution of 1280 x 800 and supports multiple systems including Raspberry Pi, Windows, Linux, Ubuntu, etc. and it is also compatible with Raspberry Pi 3/3B+/4B, Jetson Nano, Beaglebone, Banana Pi, and other mainstream development board. The biggest difference between it and other screens is the RGB water light design on its back, which not only has 19 lighting modes to choose from but also can adjust the brightness. With the exclusive bracket, you can easily create a cool atmosphere together with the lights. HDMI communication supports plug and play and can be used in multiple scenarios such as Raspberry Pi screen, computer expansion screen, party entertainment system, etc.
It supports 10-point touch and multi-touch gestures, such as click, press, zoom in/out, etc. fast response. With three buttons, you can adjust the screen backlight, RGB light switch, switch the light mode and adjust the brightness. Just use the included HDMI cable and USB cable to easily connect to the computer without additional operations.


The back side is reserved for Raspberry Pi 3/3B+/4B fixed assembly screw post, easily connect with Raspberry PiSpecification
Display Panel | Screen Size | 10.1 inch
Touch | Capacitive 10-Point Touch
Backlight Control | Support
Digital input | HDMI
Panel brightness | 300cd / m²
Contrast | 700: 1
Resolution | 1280X800
Viewing angle | 178°Wide Viewing Angle
Appearance Dimension | 239*157.5*12.6mm
Active display touch area | 216.57*135.36mm
Power Supply | DC 5V-2A
Compatibility | compatible with Raspberry Pi 3/3B+/4B
Power consumption | 5.29w(100% brightness without lighting LED string lights)
Panel | 6H Toughened Panel
Net weight | 540g
RGB light string | RGB Light Model | 3535 models, RGB full-color light
Location | Located on the back of the screen, U-shaped layout
Quantity | 27 pcs lamp beads, the interval is about 22mm
Brightness | A total of three gears (with button adjustment)
Power consumption | 7.6W (RGB 100% brightness, screen 100% brightness)
Mode | 19 Modes

Button | Backlight | Press it once to increase the brightness by 10%. After reaching 100%, press it again to return to 10%; press it for 3 seconds to turn off the backlight and press it again to restore the original brightness
RGB ON/OFF | Turn on the power to automatically start the light (the running light mode when the power was turned off the previous time), click to turn off the marquee function, and then press to turn on the marquee (run the previous mode)
RGB Mode(dial) | Toggle left: Last light modeToggle right: Next light modeMiddle press: marquee light brightness adjustment; (preset three gear adjustment, from dark to bright in turn, note: there is no light-off function)
 Noted: In the case of 5V 1A,RGB is not turned on, the brightness can only be adjusted to 90%
RGB turns on 3-level brightness, and the brightness can only be adjusted to 30%
Package List
  • 1x 10.1 inch monitor
  • 1x HDMI Cable
  • 1x Micro USB Cable(45cm)
  • 1x Micro USB Cable(100cm)
  • 1x M2.5 Screw Pack
  • 1x Phillips screwdriver
  • 2x Bracket
  • 1x Micro HDMI Adapter
