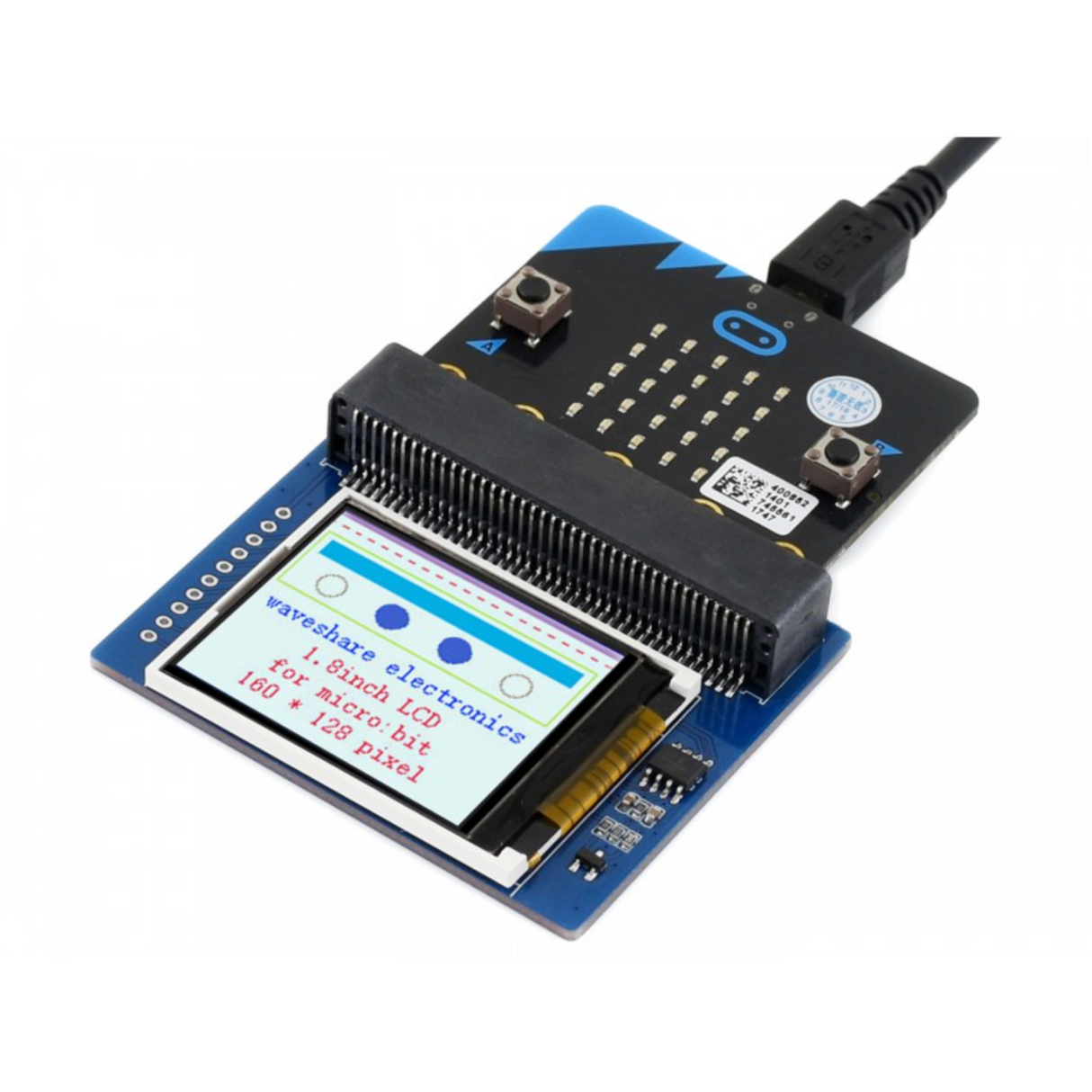

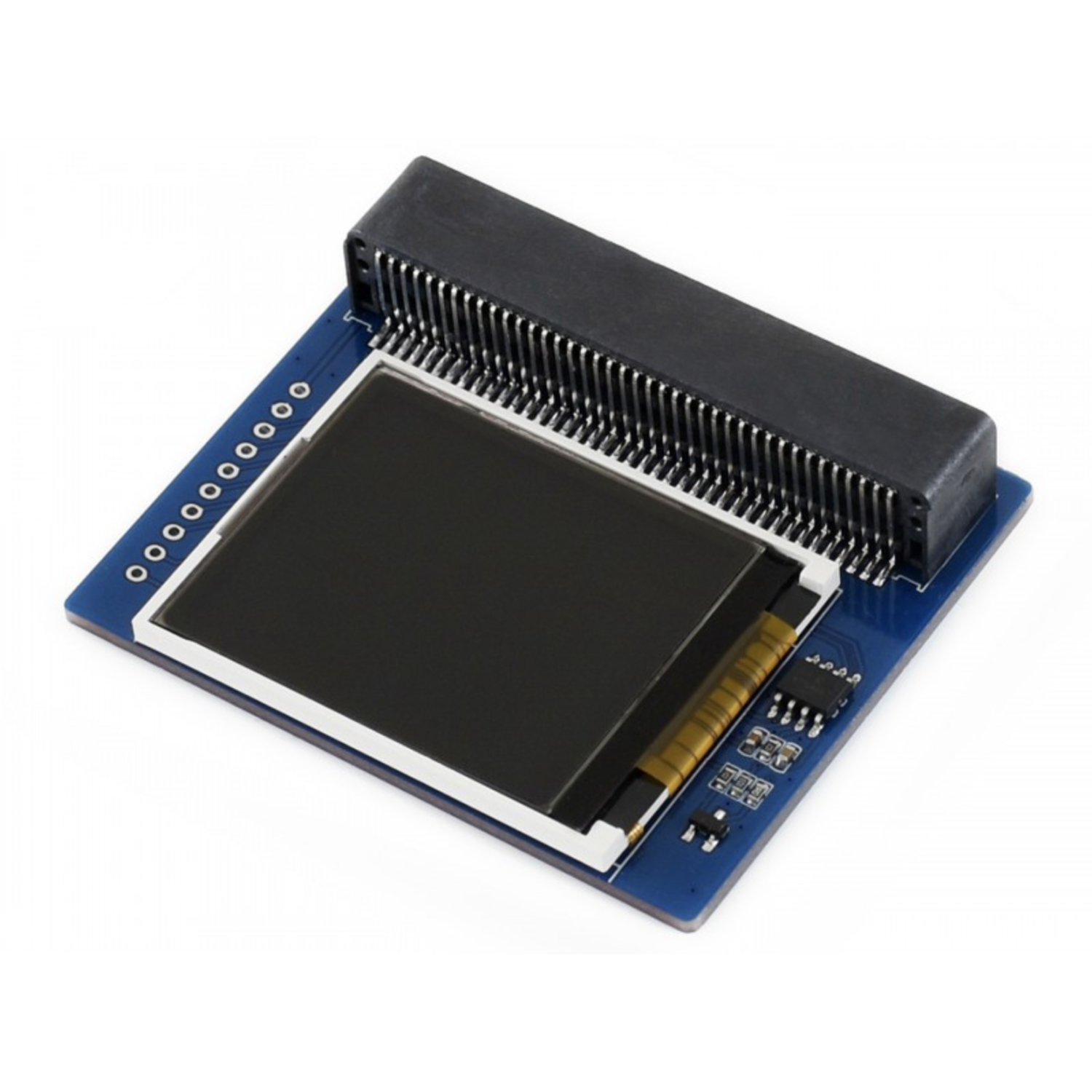

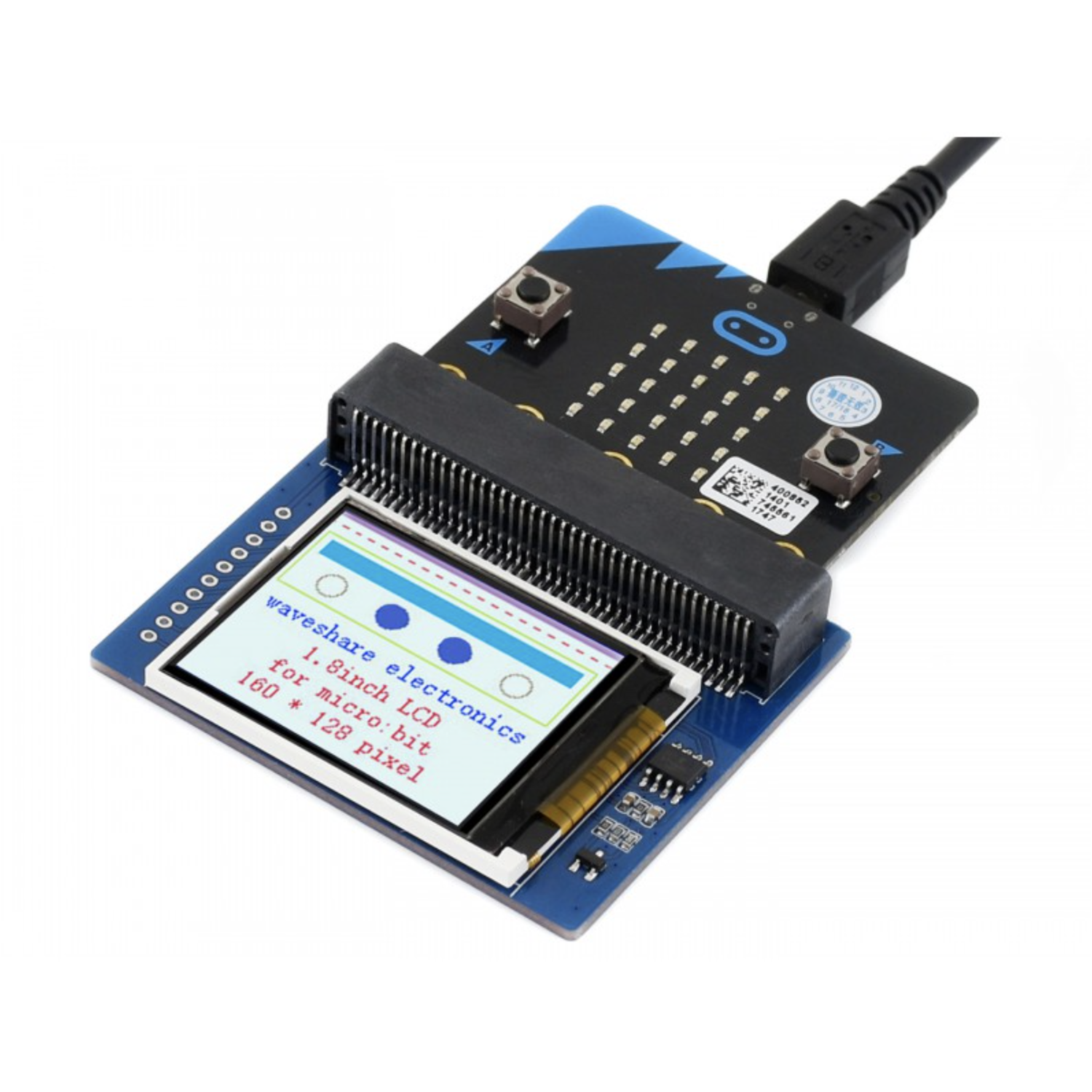

Introducing a Vibrant Display Module Tailored for the BBC micro:bit, Boasting a 1.8-inch Diagonal Screen, 160x128 Pixel Resolution, and the Capability to Showcase 65K Brilliant Colors.
Say Farewell to the 5x5 LED matrix and Upgrade to a Compact Monitor for Your micro:bit – the Perfect Choice Awaits.
Key Features:
- Convenient micro:bit edge connector for direct plug-and-play
- Embedded ST7735S driver, unleashing the power of 65K colors
- Onboard SRAM 23LC1024, acting as a display cache, eliminating memory issues
- Efficient SPI interface, conserving valuable IO pins
- Backlight adjustment facilitated through PWM
- Reserved solder pads for control interface, ensuring seamless connectivity with Arduino/Nucleo boards
- Abundant development resources included, featuring micro:bit graphical demos and a user manual
Specifications:
- Driver: ST7735S
- Resolution: 160x128 pixels
- Display Color: RGB, 65K colors
- Operating Voltage: 3.3V
- Dimensions: 61mm x 51.5mm
Pinouts
PINMICRO:BIT PINDESCRIPTION
| 3V3 | 3V3 | Power |
| GND | GND | Ground |
| MISO | P14 | SPI data master input/slave output |
| MOSI | P15 | SPI data master output/slave input |
| SCK | P13 | SPI clock input |
| LCD_CS | P16 | LCD chip selection |
| RAM_CS | P2 | SRAM chip selection |
| DC | P12 | LCD data/command |
| RST | P8 | LCD reset |
| BL | P1 | LCD backlight |
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/1.8inch_LCD_for_micro:bit
