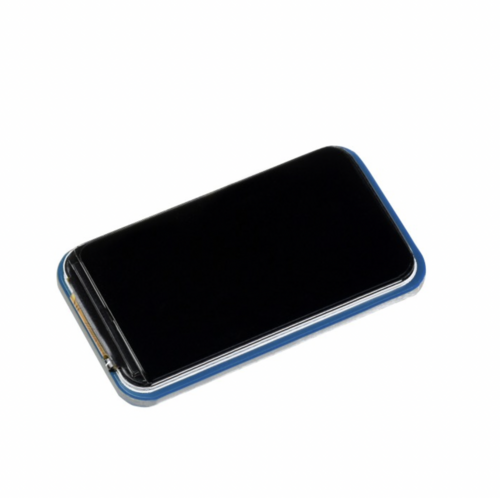

1.47inch LCD Display Module, Rounded Corners, 172x320 Resolution, SPI Interface
1.47inch LCD Display Module, Rounded Corners, 172x320 Resolution, SPI Interface is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .
The Fastest Shipping
The Fastest Shipping
We ship faster because we built our own shipping 🤖 robot.
Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.
You can view shipping options and pricing at checkout without logging in.
For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.
We deliver across Australia, and here are the options (based on your location; view them on the cart page):
- Standard Post: Starting at $7 (6+ business days, with tracking)
- Express Post: Starting at $11 (2+ business days, with tracking)
- Same Day Delivery: Available for Sydney orders.
- Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.
1.47inch LCD Display Module, Rounded Corners, 172x320 Resolution, S...
Introducing the 1.47" LCD Display Module – Your Ideal Project Companion. Boasting a 172x320 pixel resolution and an embedded ST7789V3 driver, this module delivers a vibrant display with 262K RGB colors. Controlled via the SPI bus, it seamlessly interfaces with popular controller boards such as Raspberry Pi, Arduino, and STM32. Plus, it includes a wealth of development resources and examples tailored for Raspberry Pi, Arduino, and STM32.
Specifications:
- Operating Voltage: 3.3V / 5V
- Resolution: 172 × 320 pixels
- Communication Interface: 4-wire SPI
- Display Size: 17.39 × 32.35mm
- Display Panel: IPS
- Pixel Pitch: 0.0337 × 0.1011mm
- Driver: ST7789V3
- Dimensions: 22.0 × 38.5mm
Easy Hardware Connection:
- For Raspberry Pi, follow our straightforward connection guide.
- Arduino board users can easily set up the module with our provided instructions.
