0.96inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 160×80, SPI

SKU: WS-19653
GST included. Shipping calculated at checkout.

Got a Question?

Give us a call on 1300 240 817

We Accept

American Express
Apple Pay
Google Pay
Shop Pay
Union Pay


Introducing the 0.96-Inch LCD Display Module for Raspberry Pi Pico with Vibrant 65K RGB Colours and a Crisp 160x80 Pixel Resolution, Utilizing the SPI Interface

Key Features:

  • Compact 0.96" LCD Display Module designed for Raspberry Pi Pico
  • Employs the embedded ST7735S driver with SPI bus communication
  • Includes Raspberry Pi Pico C/C++ and MicroPython Demos
  • Display Size: 0.96"
  • Resolution: 160x80 pixels
  • Display Colour: 65K RGB

User-Friendly Design:

  • SPI Interface for efficient data transfer with minimal IO pins

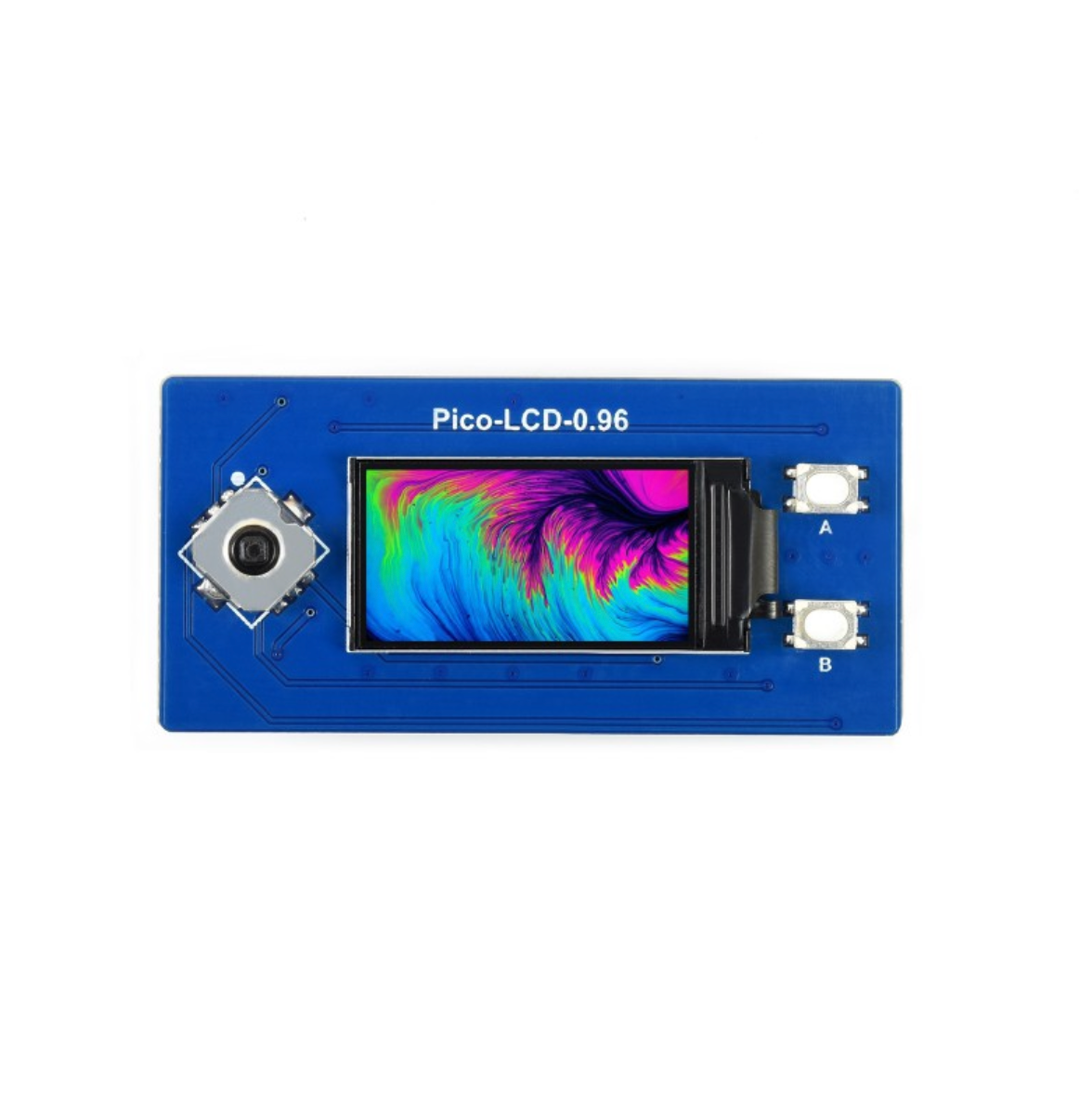

  • Equipped with 1x joystick and 2x user buttons for easy interaction

Compatibility and Accessories:

  • Compatible with Raspberry Pi Pico headers

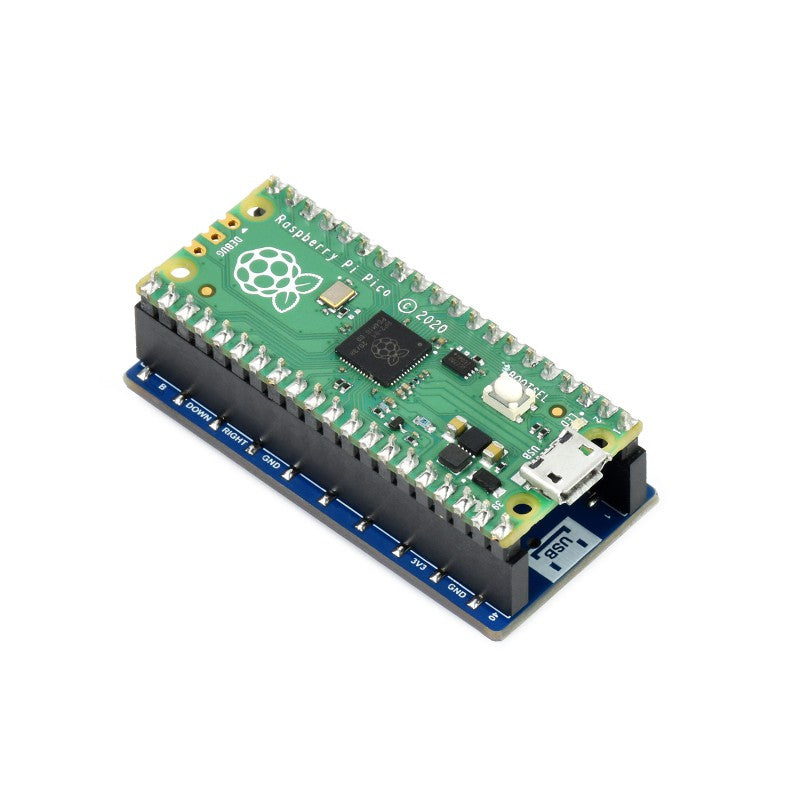

  • Onboard female pin header for direct attachment to Raspberry Pi Pico
  • Raspberry Pi Pico is NOT included

Pinout and Dimensions:

  • Clearly defined pinout information
  • Compact outline dimensions

Resources and Support:

  • Comprehensive development resources and manual, featuring Raspberry Pi Pico C/C++ and MicroPython examples
  • Explore additional resources on the WIKI page: Pico-LCD-0.96

Your Package Includes:

  • 1x Pico-LCD-0.96 Display Module
Raspberry Pi Pico is NOT included.
