Is My Camera/Display (CSI/DSI) Cable Compatible with the Raspberry Pi 5?

Is My Camera/Display (CSI/DSI) Cable Compatible with the Raspberry Pi 5?

The highly anticipated Raspberry Pi 5, launched in late 2023, has quickly become a bestseller with its enhanced single-board computer (SBC) version. If you're eager to get your hands on the latest Raspberry Pi 5, don't forget to consider essential accessories to optimize your Pi experience.

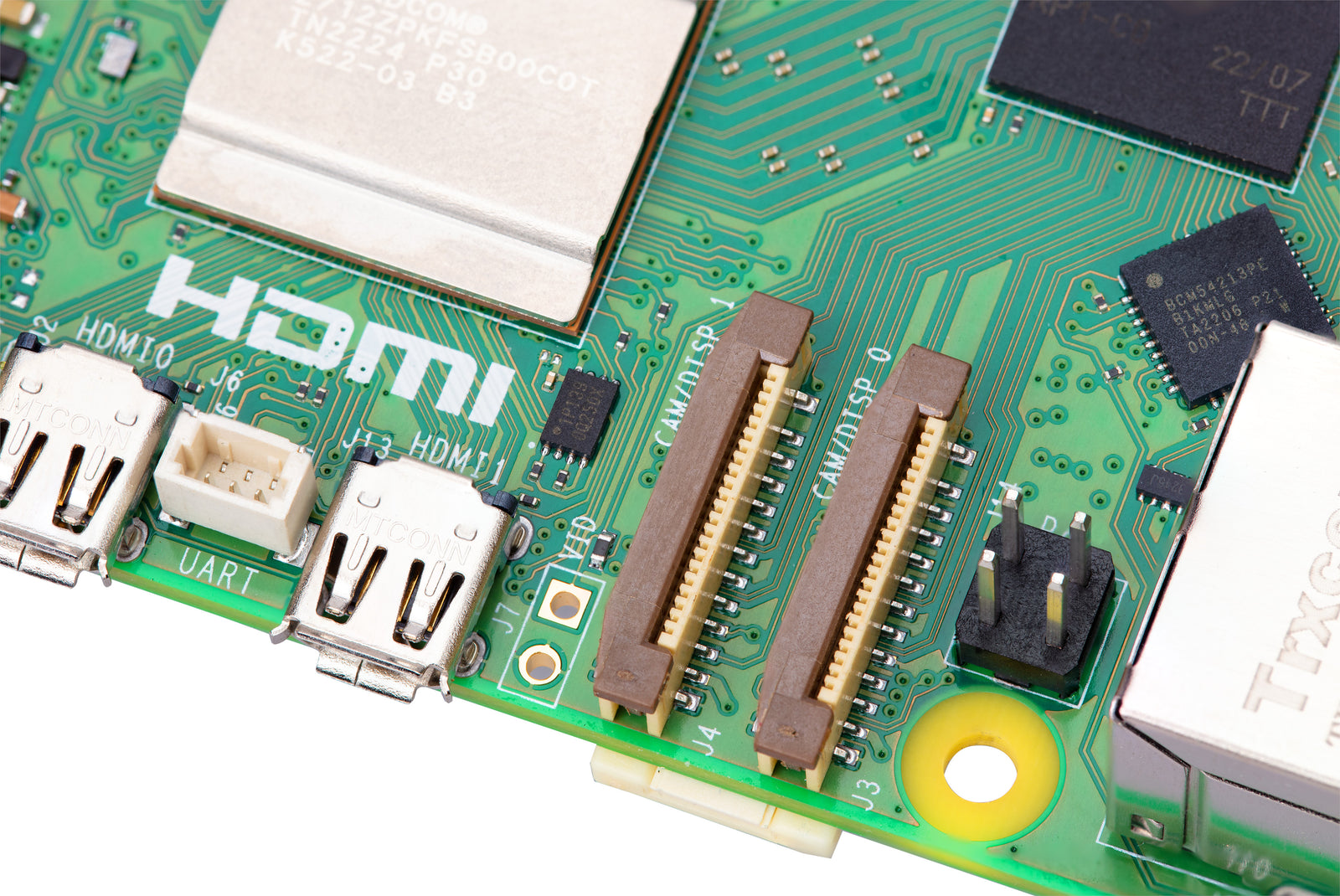

One noteworthy feature of the Raspberry Pi 5 is the introduction of smaller camera/display connectors, requiring specialized adapter cables for connecting camera modules and touchscreen displays.

A crucial point to note is that there are two distinct versions of the new adapter cables—one designed for camera modules and the other for DSI displays. Selecting the correct cable corresponding to the device you are using is imperative. Each cable is clearly labelled as either 'Camera Cable' or 'Display Cable,' making it easy to identify the right one for proper use.

It's important to highlight that the camera modules and displays themselves remain compatible with the Raspberry Pi 5; the only requirement is the use of the new cables.

In previous models, the Raspberry Pi featured dedicated two-lane 1Gbps MIPI camera and display interfaces. However, the Raspberry Pi 5 has undergone a noteworthy change. The conventional interfaces have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers. This upgrade not only triples the total bandwidth but also provides a flexible solution that supports any combination of up to two cameras or displays.
