New Raspberry Pi HQ Camera in Australia.
This new camera accessory from Raspberry Pi offers higher resolution 12 megapixels, compared to 8 megapixels, and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, but the real awesomeness is that it is designed to work with interchangeable lenses in both C- and CS-mount form factors.
This makes it perfect for industrial and consumer applications, from everything from simple old security cameras to machine vision.
The new HQ Camera is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release from www.raspberrypi.org.

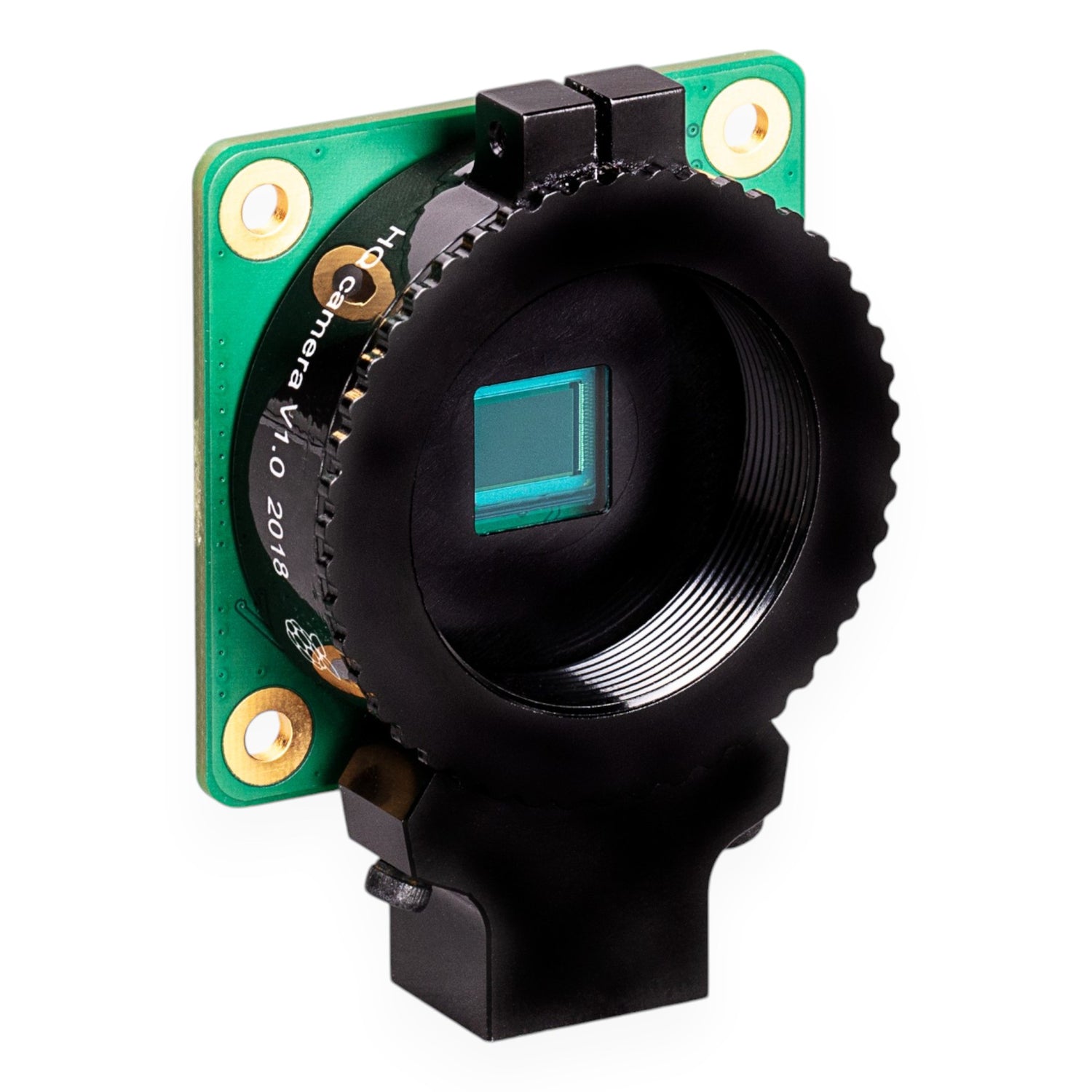

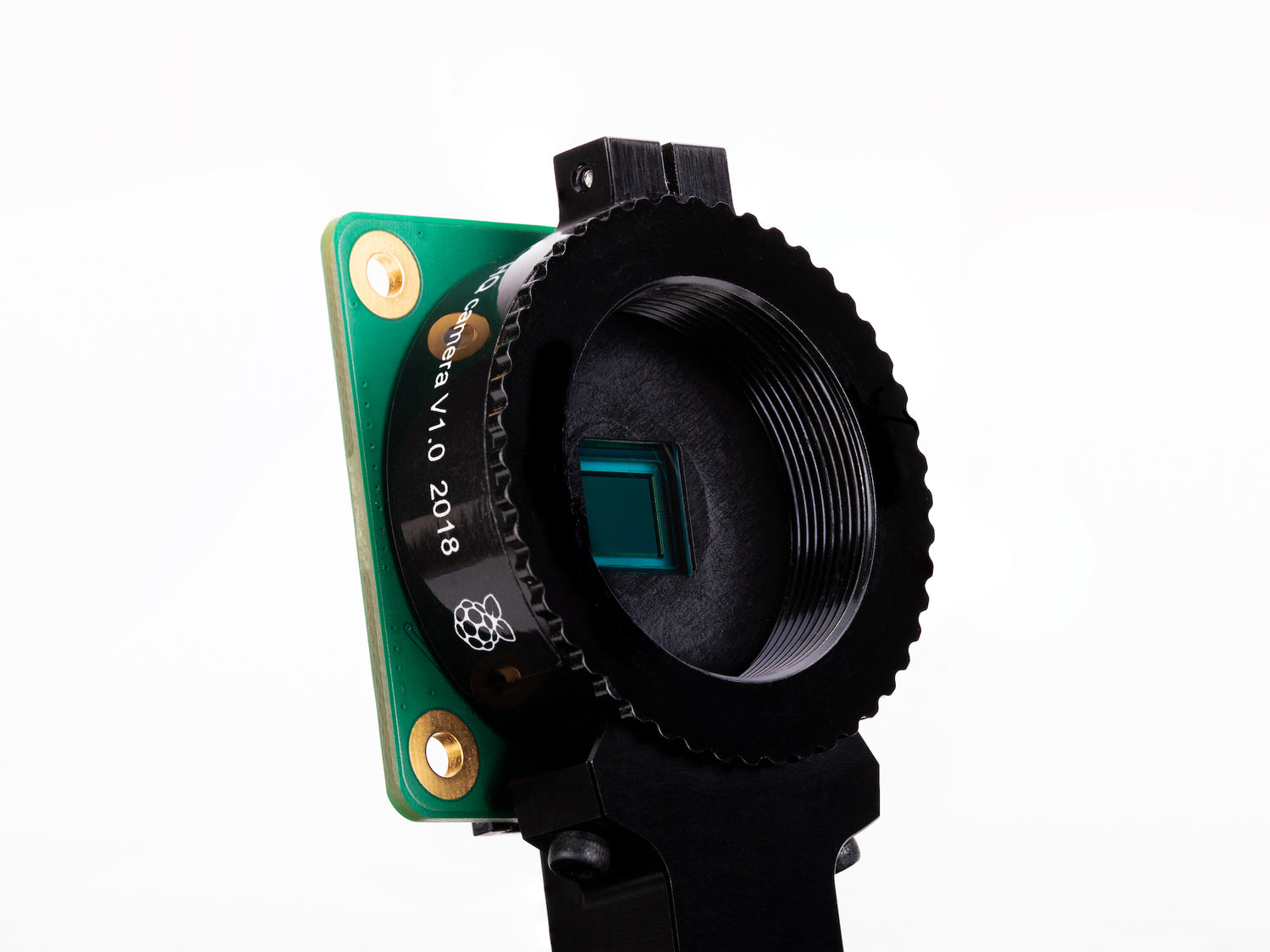

The Raspberry Pi HQ Camera Module includes:

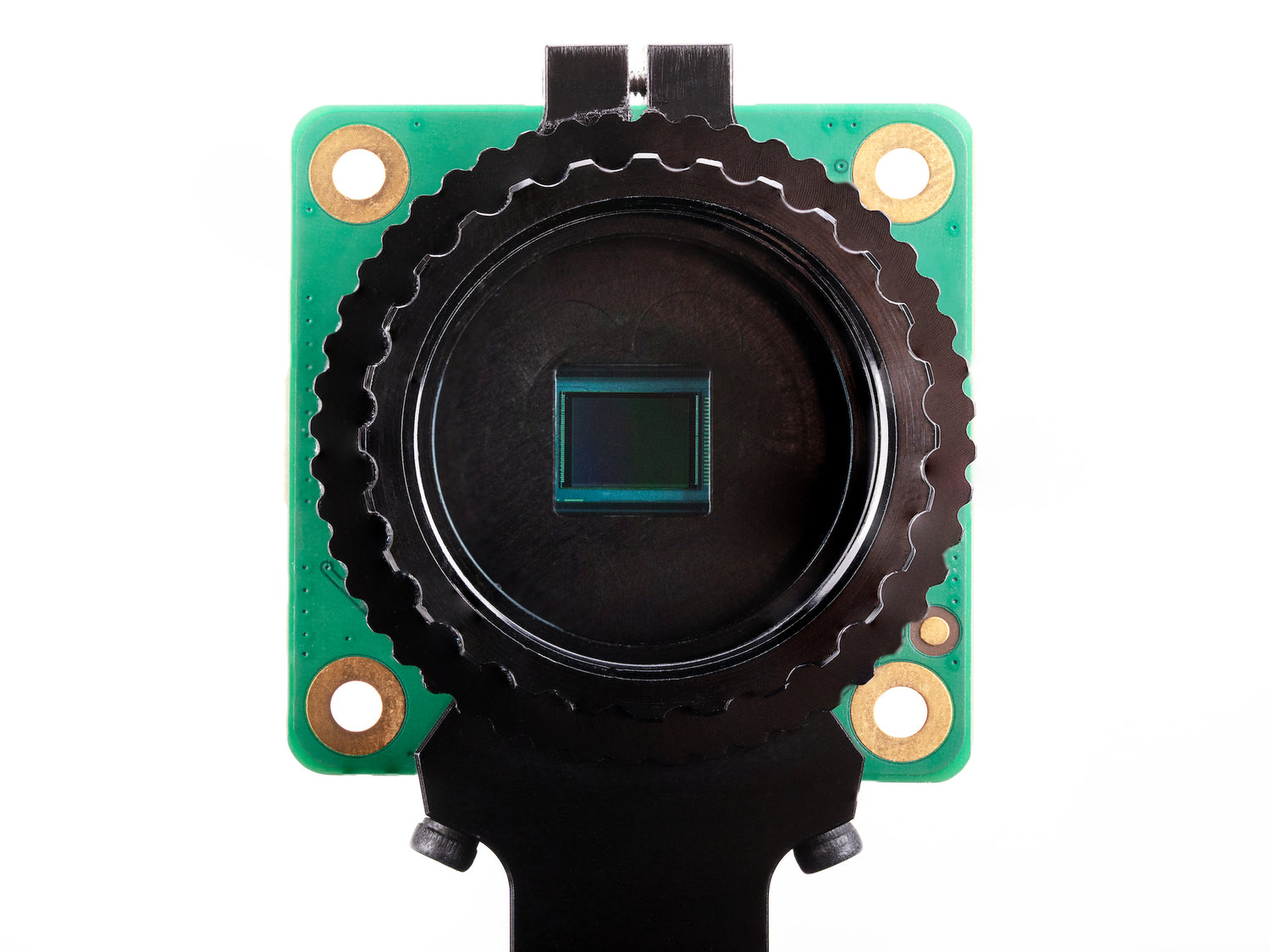

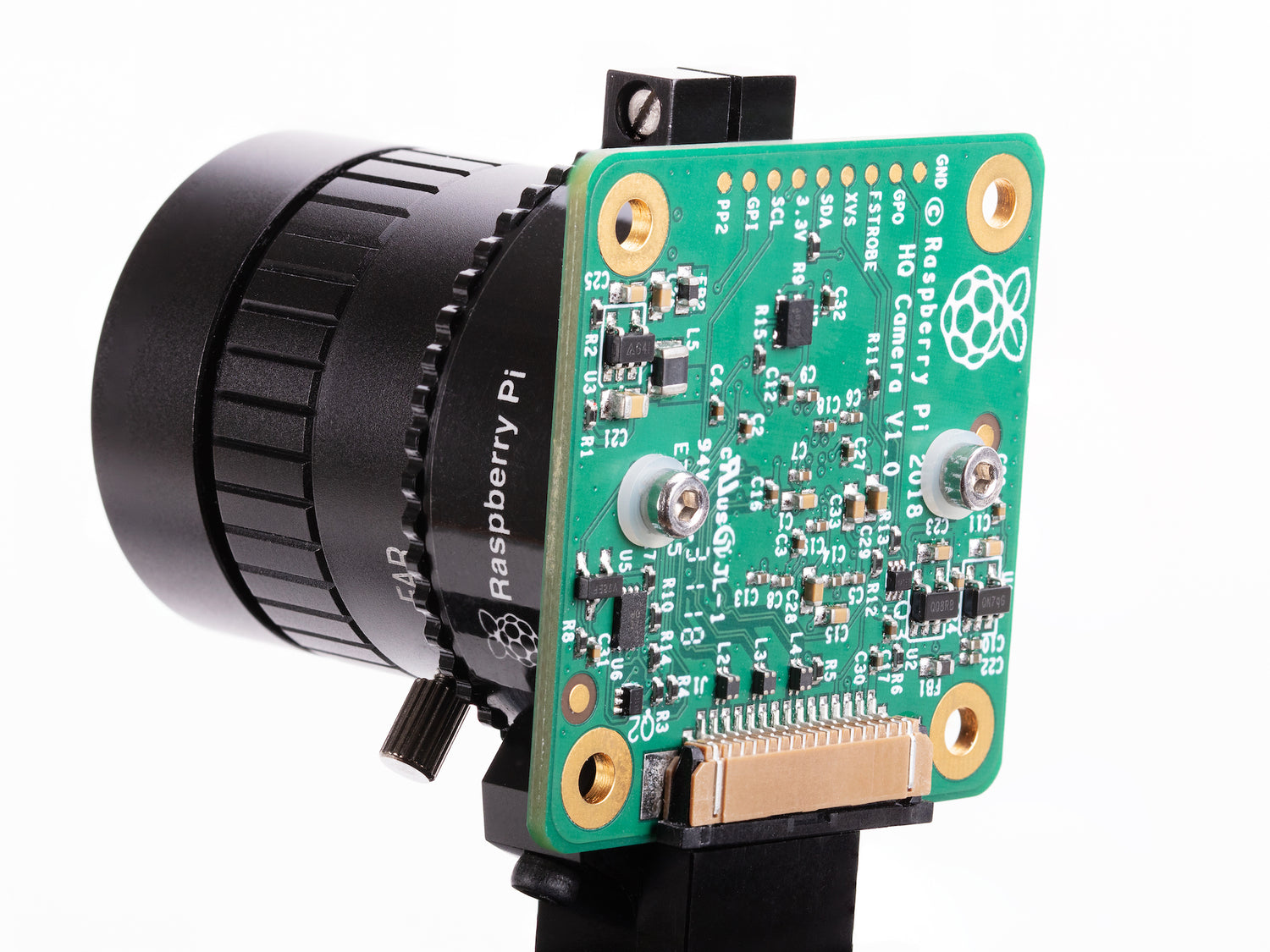

- a circuit board carrying a Sony IMX477 sensor

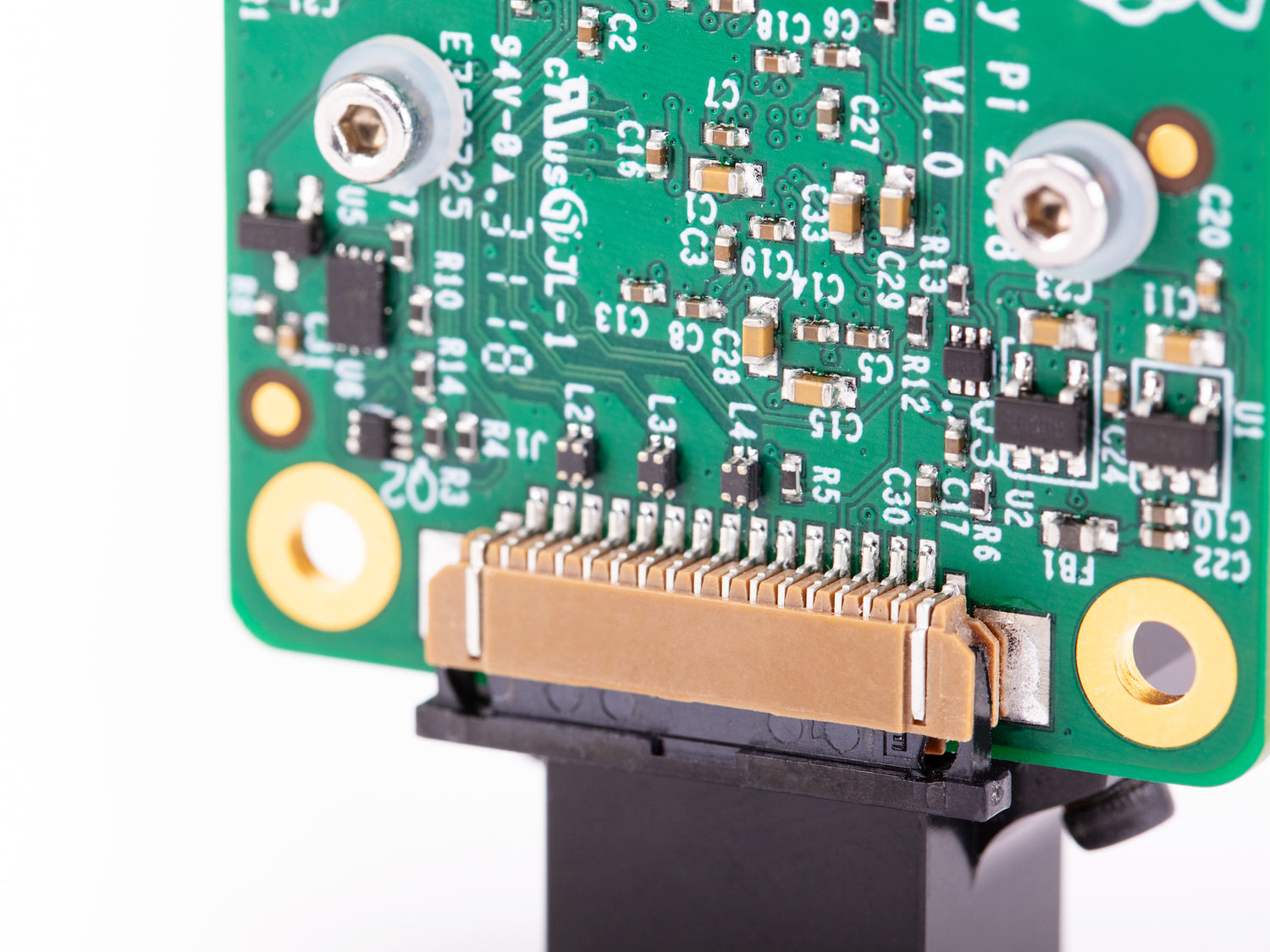

- an FPC cable for connection to a Raspberry Pi computer

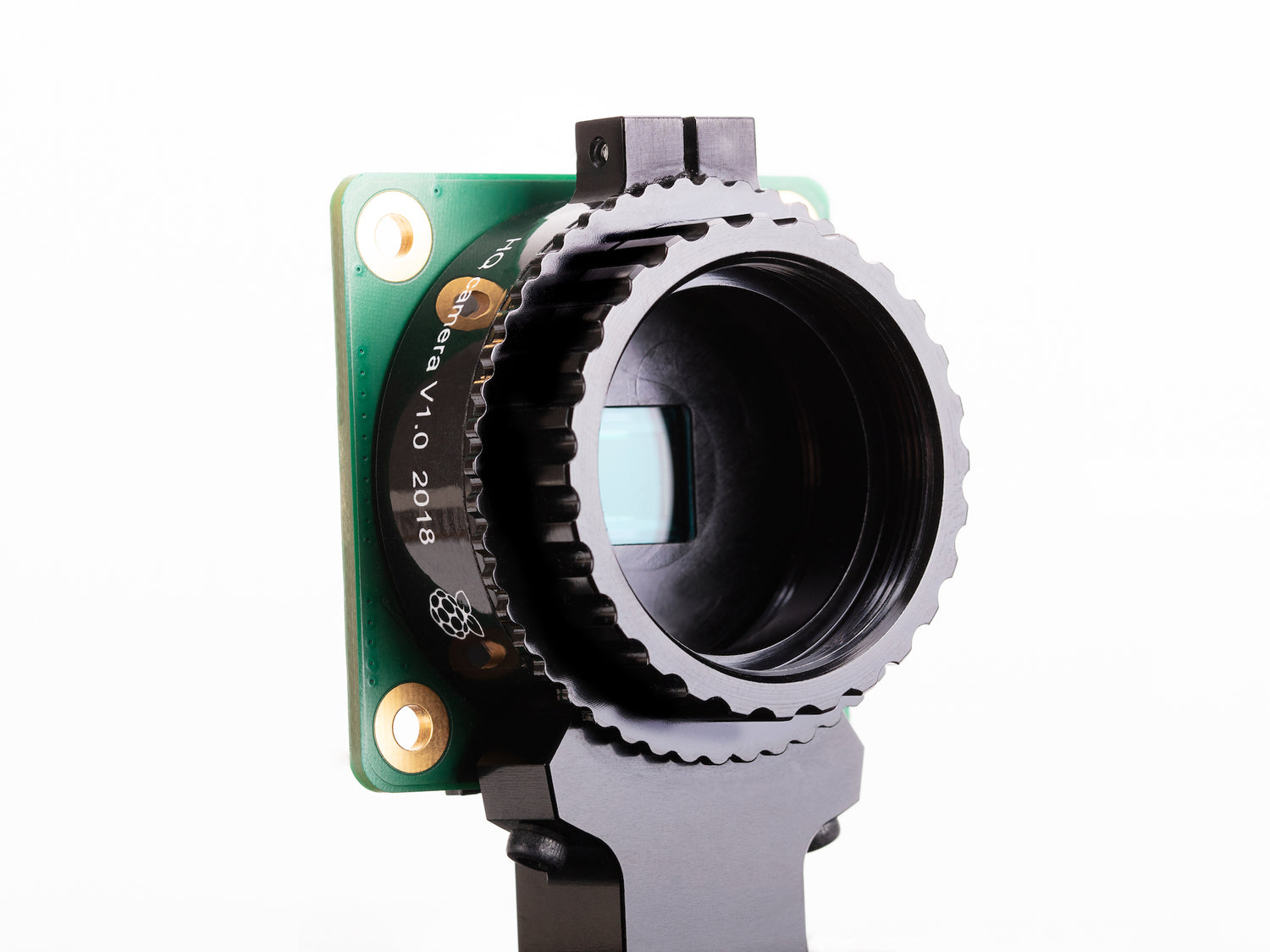

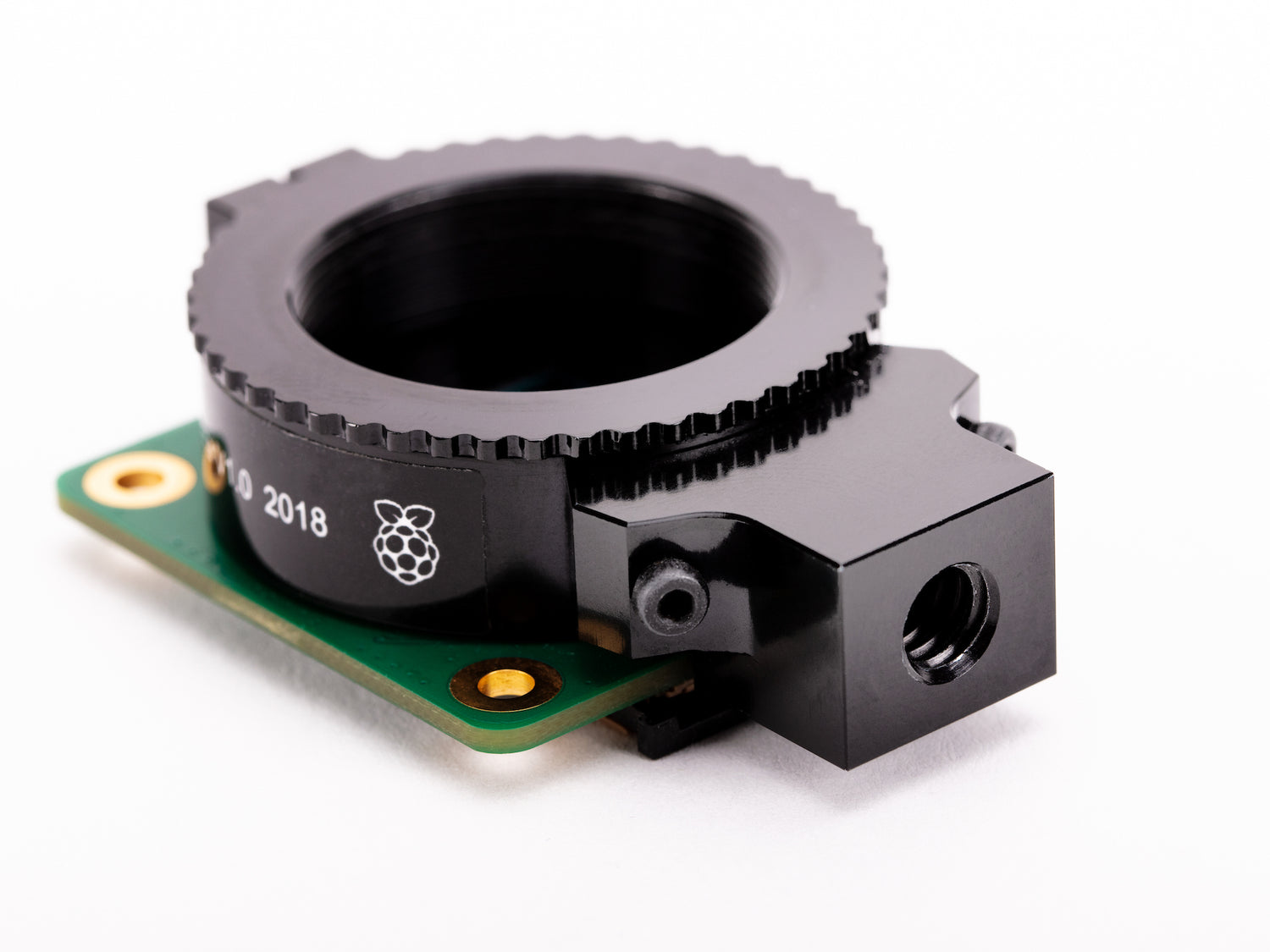

- a milled aluminium lens mount with integrated tripod mount
- a focus adjustment ring,
- and a C- to CS-mount adapter.

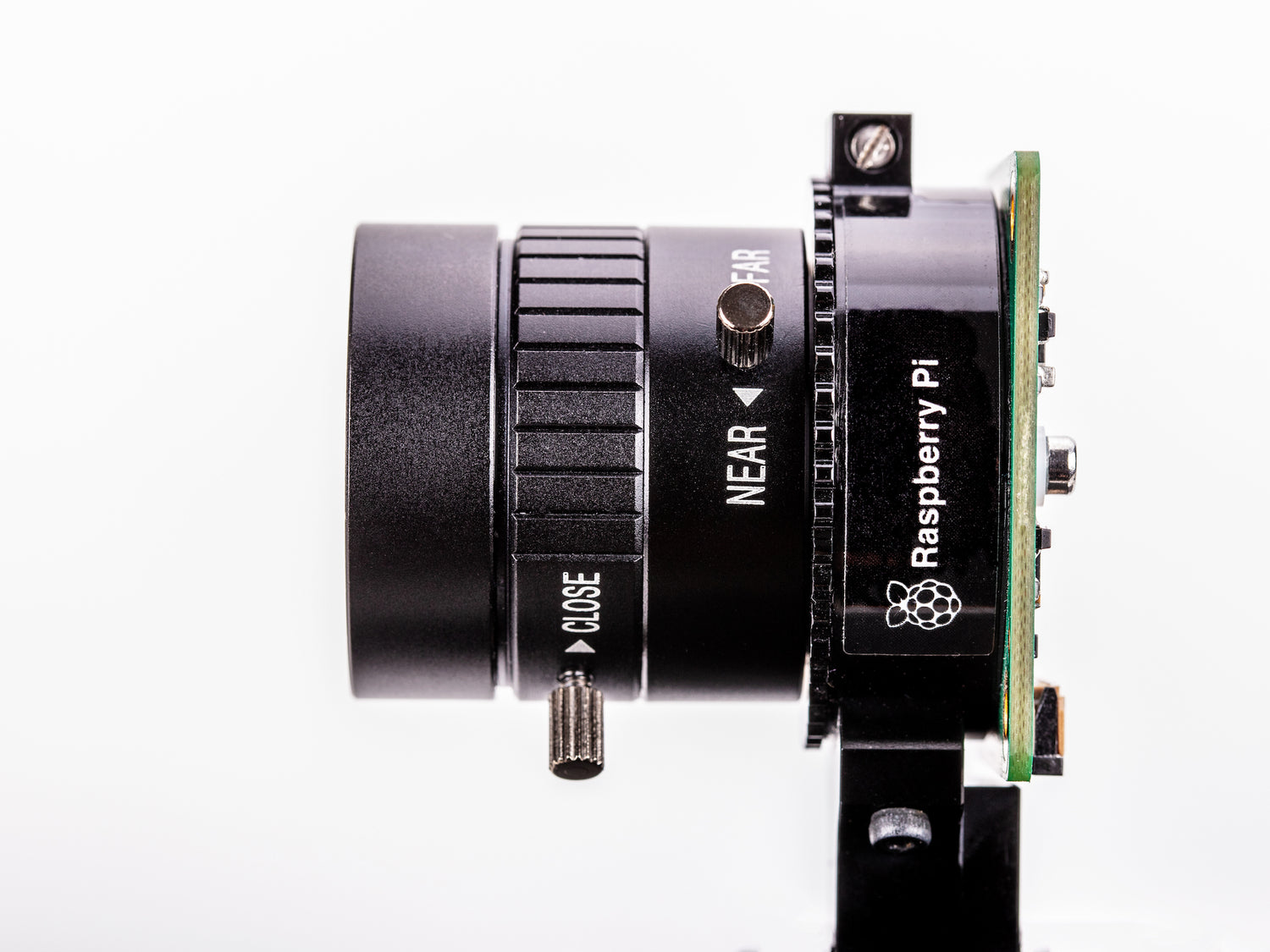

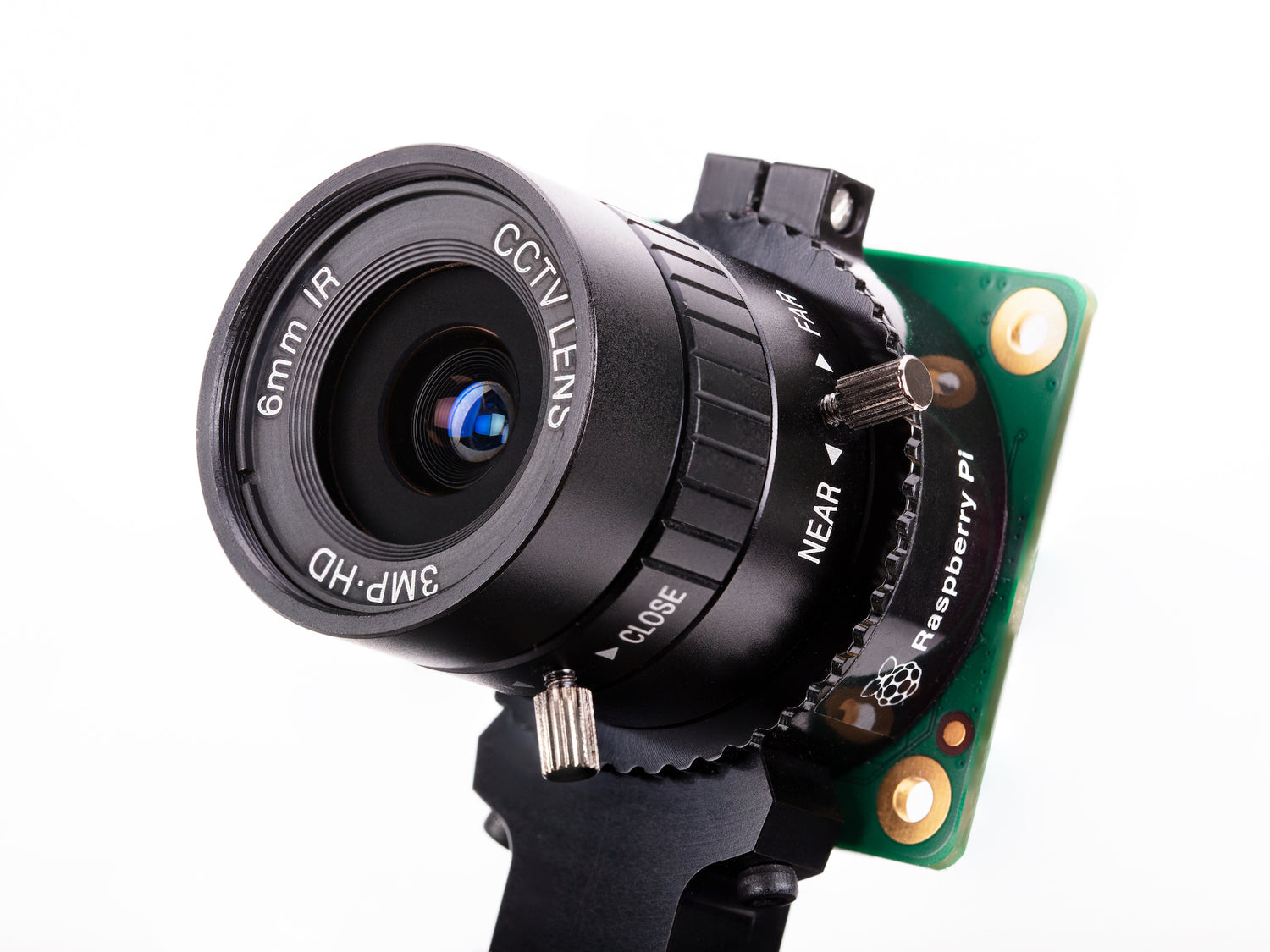

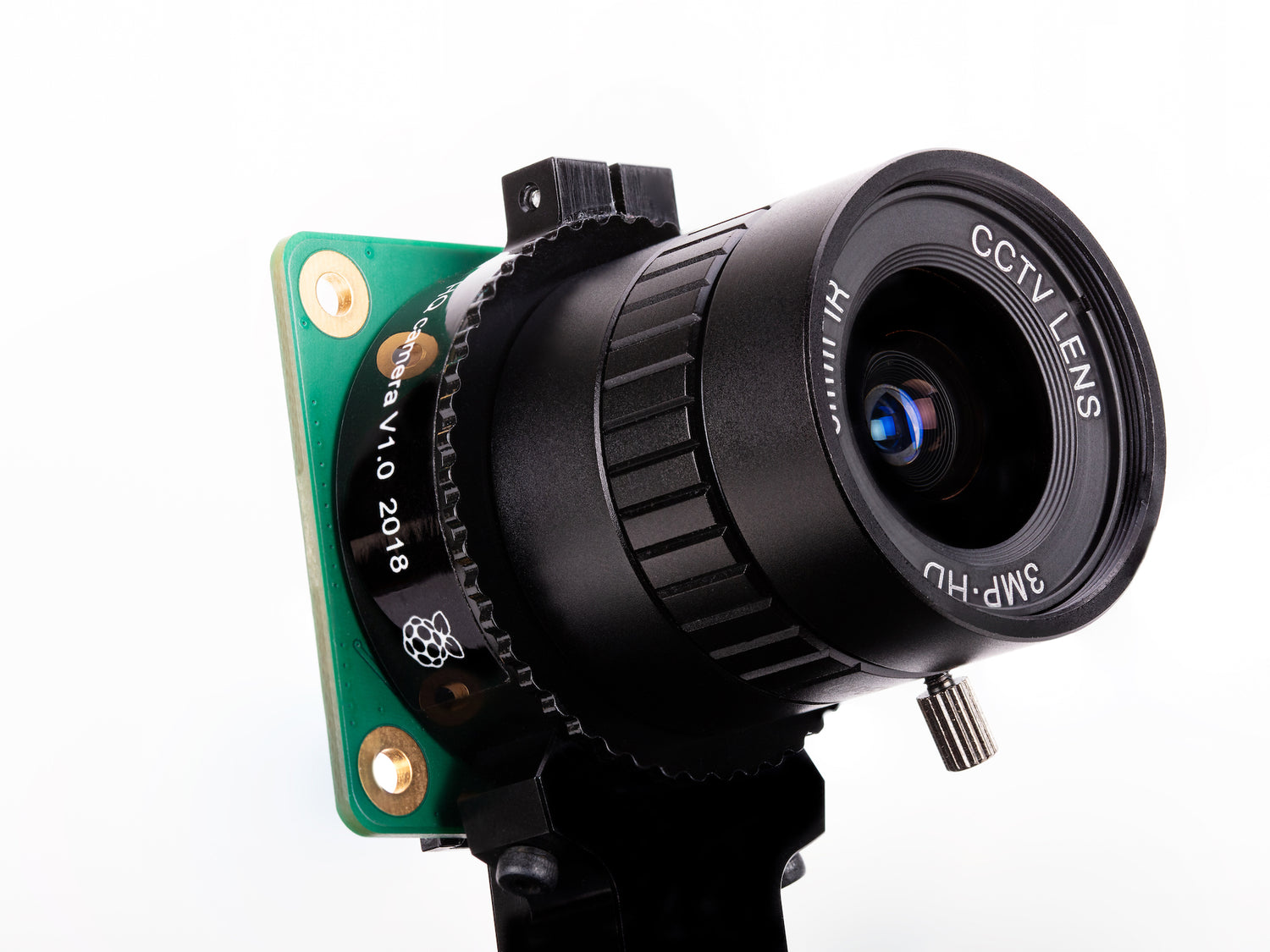

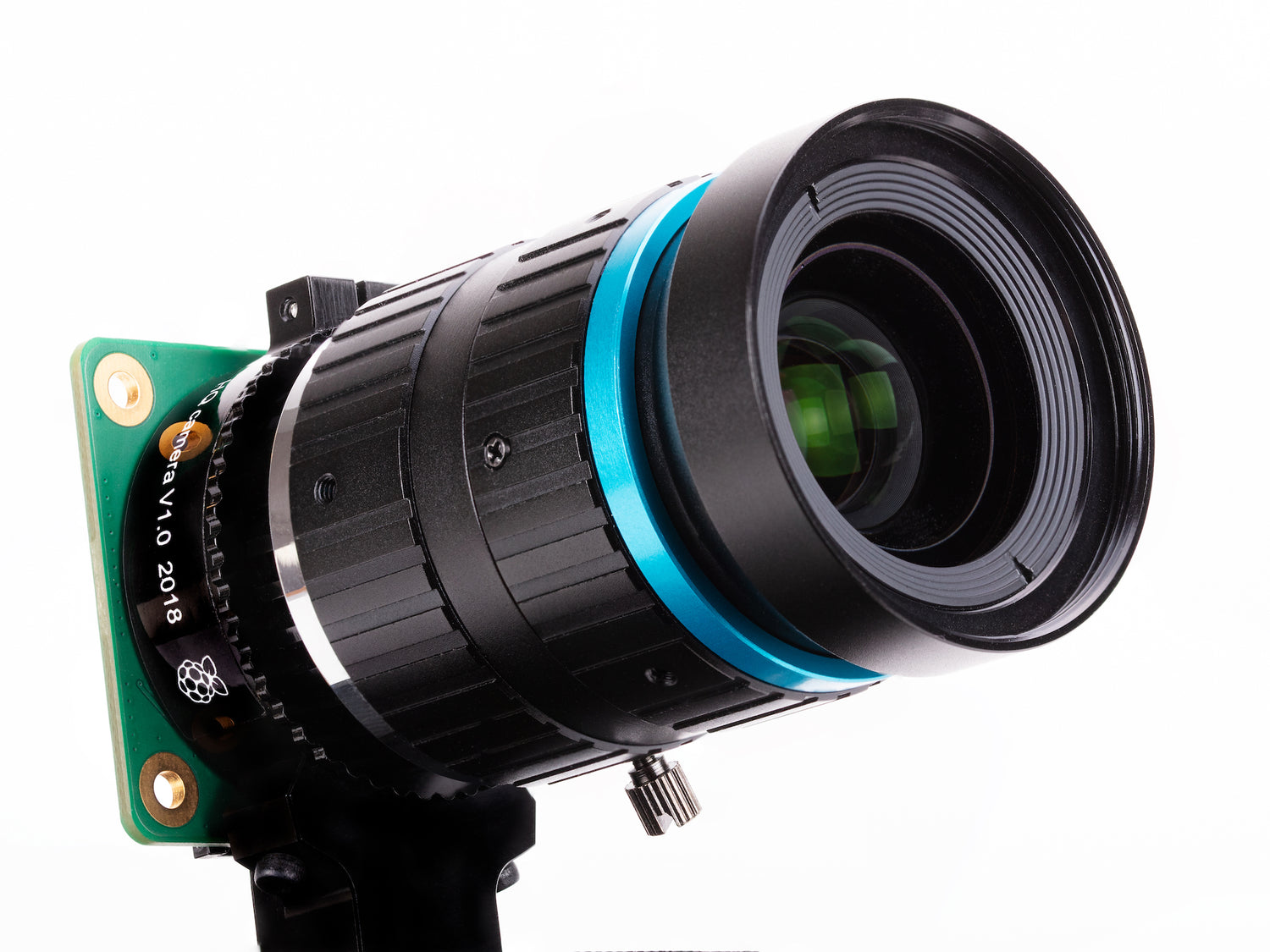

Please note: The Raspberry Pi High Quality camera does not come with lens, and requires a lens for use. The two official lenses from the Raspberry Pi Foundation are sold separately. They are the 6mm Wide Angle Lens for Raspberry Pi HQ Camera and 16mm Telephoto Lens for Raspberry Pi HQ Camera.
For more information, please view the Raspberry Pi HQ Camera quick-start guide from the Raspberry Pi Foundation.
Note: Lenses sold separately.

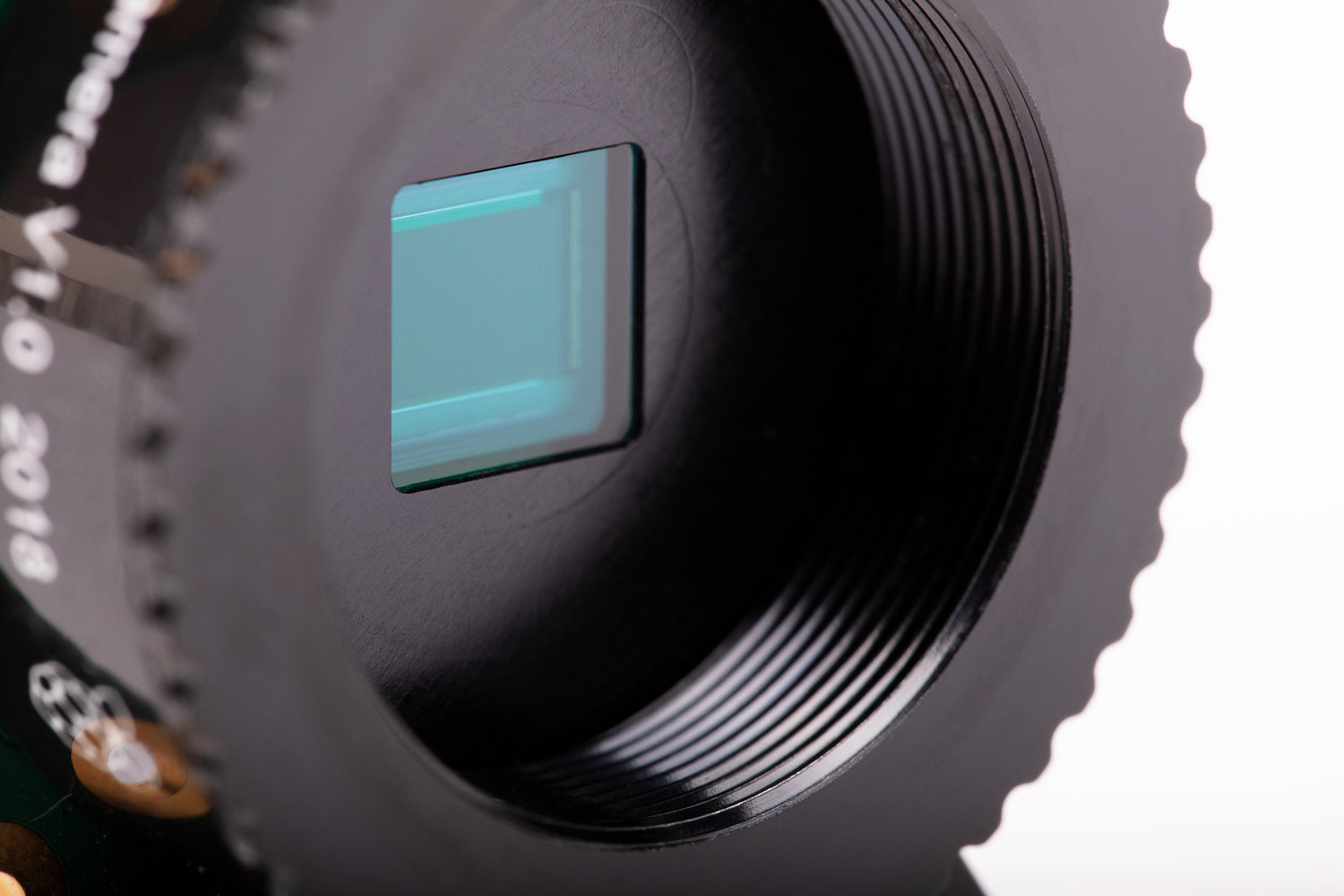

|Sensor:||Sony IMX477R stacked, back-illuminated sensor 12.3 megapixels
7.9 mm sensor diagonal
1.55 μm × 1.55 μm pixel size
|Back focus:||Adjustable (12.5 mm–22.4 mm)|
CS-mount (C-CS adapter included)
|IR cut filter:||Integrated (Can be removed to enable IR sensitivity. Modification is irreversible).|
|Ribbon cable length:||200 mm|
|Compliance:||1FCC 47 CFR Part 15, Subpart B, Class B Digital Device
Electromagnetic Compatibility Directive (EMC) 2014/30/EU
Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
|Production lifetime:||The Raspberry Pi High Quality Camera will remain in production until at least January 2026|
Raspberry Pi High Quality Camera
We have 67 units in our Sydney Warehouse available for immediate dispatch.
|Raspberry Pi Model Compatibility|
|RP4||Works with Raspberry Pi 4 Model B|
|RP3A+||Works with Raspberry Pi 3 Model A+|
|RP3B+||Works with Raspberry Pi 3 Model B+|
|RP3B||Works with Raspberry Pi 3 Model B|
|RP2B||Works with Raspberry Pi 2 Model B|
|RP1B+||Works with Raspberry Pi 1 Model B+|
|RP1A+||Works with Raspberry Pi 1 Model A+|
|RP0W||Requires other products to use with Raspberry Pi Zero W|
|RP0||Requires other products to use with Raspberry Pi Zero|
|RPCM3+||Doesn't with Raspberry Pi Compute Module 3+|
