Description

Turn Your Dreams into Reality with the Raspberry Pi 4 Model B.

Transform the way you compute with the latest version of the Raspberry Pi 4 Model B. This credit-card-sized computer is perfect for word processing, spreadsheets, gaming, productivity apps and so much more. It even supports HD video, allowing customers to create a media center for streaming. All you need is a keyboard, mouse, HDMI display, power supply, and a micro SD card loaded with a Linux distribution and you're good to go.

The Raspberry Pi 4 Model B supports HD video, making it a great choice for building a media center. With its impressive speed compared to the Raspberry Pi 3 Model B+, you'll never miss a beat. Get started with our comprehensive guide on the Raspberry Pi 4 Model B+.

Take Your Skills to the Next Level with Our Step-by-Step Guides.

We've got you covered with step-by-step guides on how to get the most out of your Raspberry Pi 4. Check them out and see just how much you can achieve with this powerful device.

Tech Specs

Chip
  • Broadcom 2711
  • 64bit
  • ARMv8
  • Quad Core Cortex A72
  • 1.5 GHz
Storage microSD Card
Memory 1 GB, 2 GB, or 4GB LPDDR4 SDRAM
Graphics
  • OpenGL ES 1.1, 2.0, 3.0
  • Hardware-Accelerated OpenVG
  • H.265 decode (4kp60)
  • H.264 decode (1080p60)
  • H.264 encode (1080p30)
Weight 42g
Audio
  • 2x microHDMI port supports multichannel audio output
  • Audio line out/3.5-mm headphone jack (analog)
Connections and
Expansions
  • 2x USB 2.0 ports (up to 480 megabits per second)
  • 2x USB 3.0 ports (up to 5 gigabits per second)
  • 2x microHDMI ports
  • 3.5mm 4-pole Composite Video and Audio jack
  • Power Input USB-C type C connector
  • DSI Display Port
  • CSI Camera Port
  • MicroSD card slot
  • 40-pin GPIO (Male headers)

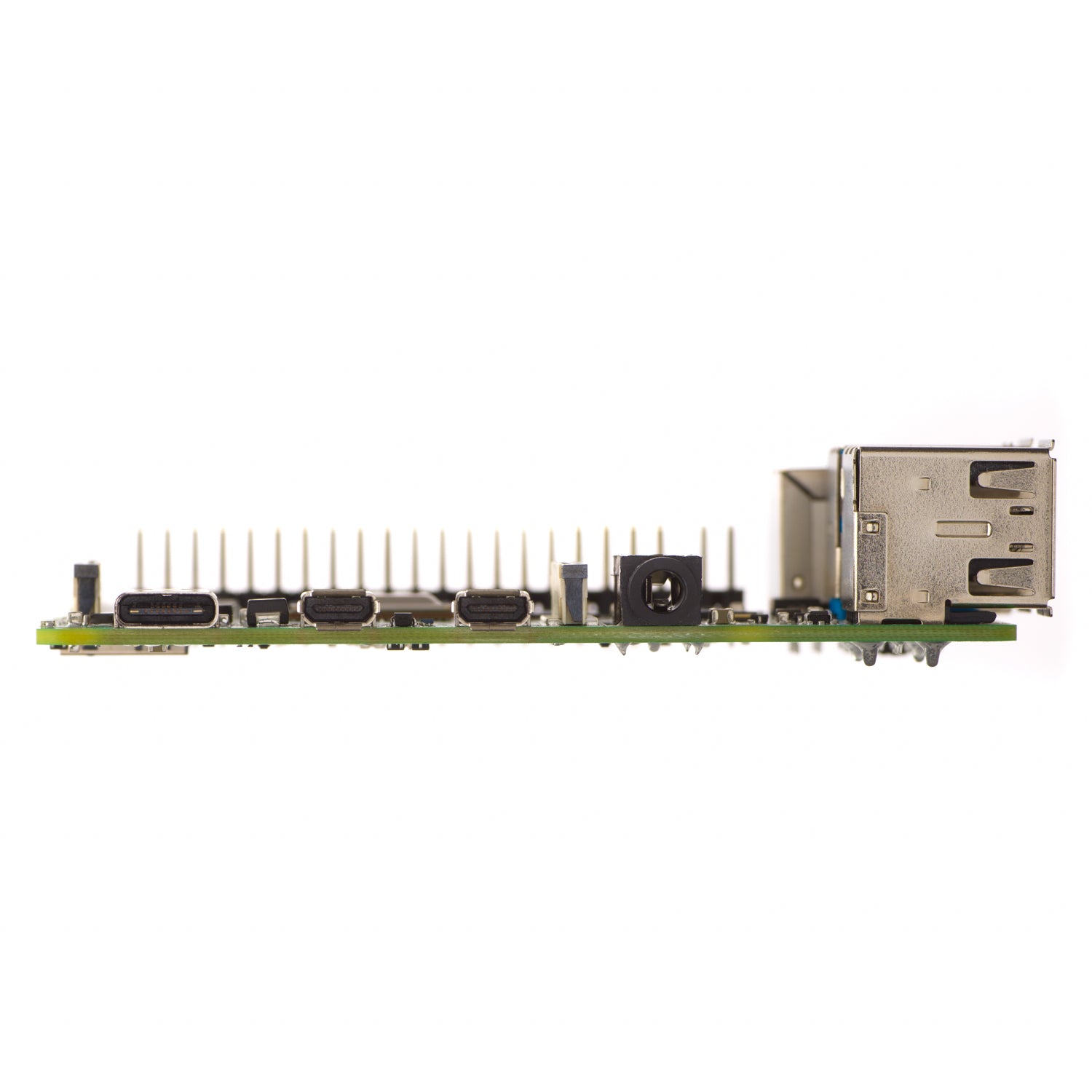

Side image of Raspberry Pi 4 Model B ports (USB-C Power, 2x MicroHDMI and Headphone port).

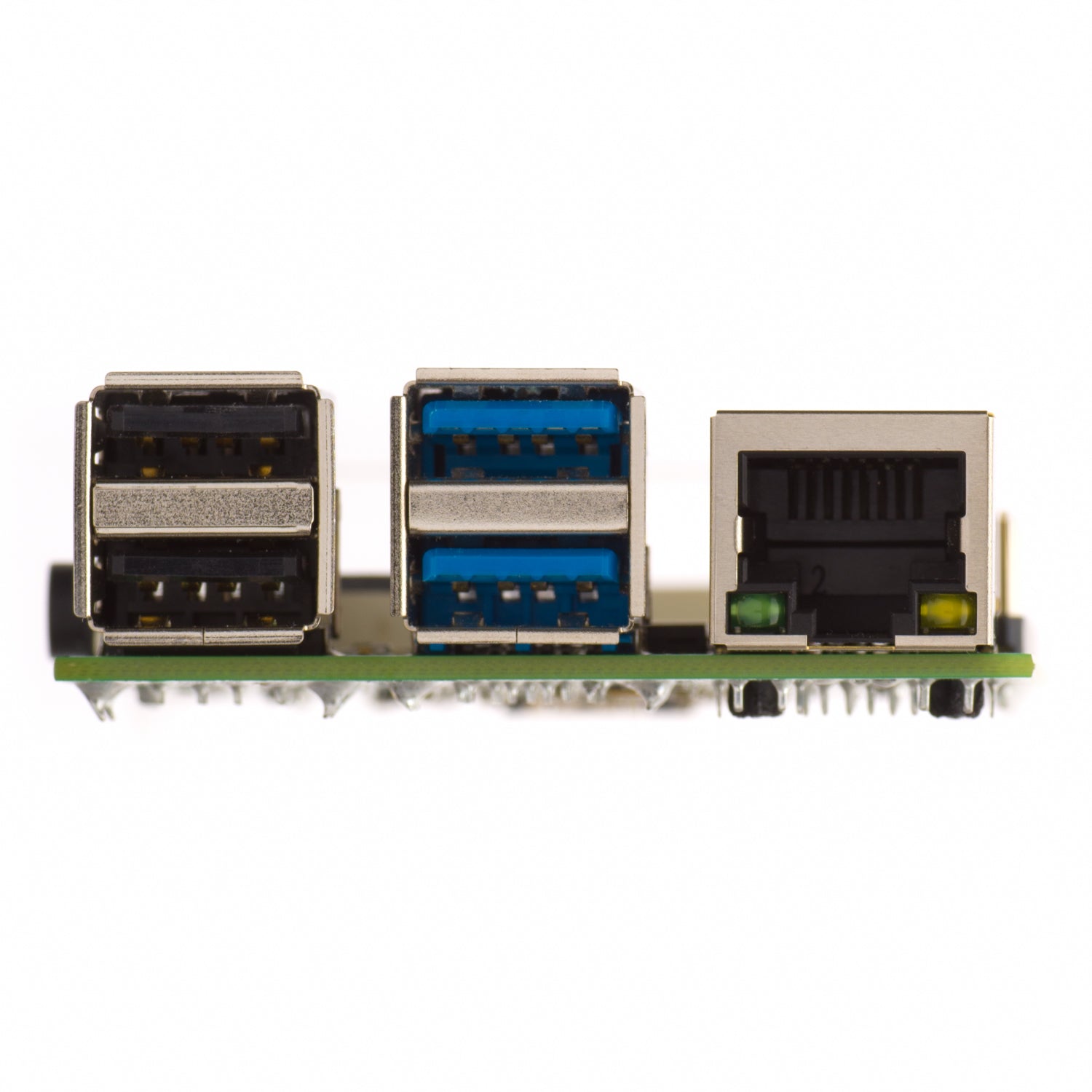

Image of Raspberry Pi 4 USB Ports. 2x USB 2.0 ports on the left, 2x USB 3.0 ports in the middle. RJ45 Connector on the right for true Gigabit Ethernet

Communications Wi-Fi
802.11ac WiFi wireless Networking;IEEE 802.11.b/g/n/ac compatible

Bluetooth
Bluetooth 5.0 wireless technology with BLE (Bluetooth Low Energy)

Ethernet
10/100/1000BASE-T Ethernet RJ-45 connector. True Gigabit Ethernet
Electrical and
Operating Requirements
Input voltage: 5V DC
Power over Ethernet: (requires separate PoE HAT)
Current Requirement: 3 Amps
Operating System Raspberry Pi Foundation's Offical supported Operating Systems
  • NOOBS
  • Raspbian


GPIO Pin-Out

246810121416182022242628303234363840135791113151719212325272931333537393.3VSDA GPIO2SCL GPIO3GPIO4GNDGPIO17GPIO27GPIO223.3VMOSI GPIO10MISO GPIO9SCLK GPIO11GNDIDSDGPIO5GPIO6GPIO13GPIO19GPIO26GND5V5VGNDGPIO14 TXDGPIO15 RXDGPIO18 CLKGNDGPIO23GPIO24GNDGPIO25GPIO8 CD0GPIO7 CE1IDSDGNDGPIO12GNDGPIO16GPIO20 DINGPIO21 DOUTSPII2CSPIUARTPCMPCMPCM5V Power3.3V PowerGroundhttps://piaustralia.com.au
Raspberry Pi 4 Model B Pin-Out
Raspberry Pi 4 Model B Pin-Out



FAQs

What is the Raspberry Pi 4 B Input Voltage?

  • The Raspberry Pi 4 Model B Input Voltage is 5V at 3 Amps.



What power connector does the Raspberry Pi 4 Model B use?

  • The Raspberry Pi 4 Model B uses a USB-C connector for power input. Whilst the port uses a USB-C connector, it is for power only and no data can be transmitted over this port.



Does the Raspberry Pi 4 Model B have WiFi?

  • The Raspberry Pi 4 Model B has 802.11ac WiFi wireless Networking built-in. The board is 802.11.b/g/n/ac compatible, supporting both 2.4Ghz and 5Ghz frequencies.



What CPU is on the Raspberry Pi 4 Model B?

  • The Raspberry Pi 4 Model B has a Broadcom 2711 system on a chip which is a Quad-core Cortex-A72 64-bit chip running at 1.5GHz. During benchmarks, the Raspberry Pi 4 Model B reports as running a BCM2835.



Can my Raspberry Pi 4 Model B run Windows 10?

  • The Raspberry Pi 4 Model B does not support Windows 10.



What operating systems can the Raspberry Pi 4 Model B run?

  • The Raspberry Pi 4 Model B supports NOOBs and Raspbian which are Linux based operating systems.



Is there are case or enclosure available for he Raspberry Pi 4 Model B?

  • There is no case available for the Raspberry Pi 4 Model B at launch. An official case/enclosure for the Raspberry Pi 4 Model B is coming soon.



What display connectors are on the Raspberry Pi 4 Model B?

  • The Raspberry Pi 4 Model B has two microHDMI ports that can be used for connecting two displays.



What is the difference between the Raspberry Pi 4 Model B and the Raspberry Pi 3 Model B+?

  • The Raspberry Pi 4 Model B much faster than the Raspberry Pi 3 Model B+. Depending on the type of computational workload, the 4 is between 15 and 60% faster than the Raspberry Pi 3 Model B+.



Does the Raspberry Pi 4 Model B support Gigabit Ethernet?

  • The Raspberry Pi 4 Model B supports true Gigabit Ethernet. In testing the Raspberry Pi 4 averaged 912mbps (versus 294mbps on the Raspberry Pi 3 Model B+).



What Raspberry Pi 4 Model B benchmarks are we getting?

  • Using the open-source benchmark software Phronix Test Suite, the Raspberry Pi 4 Model B (with 1GB RAM) completed the prime CPU test in 60 seconds (compared to the Raspberry Pi 3 Model B+'s 80 seconds). The render test showed the Pi 4 at 27fps at 720p (compared to the Pi 3 at 16fps at 720p).



What Raspberry Pi 4 B accessories are recommended?

  • The essential accessories needed for the Raspberry Pi 4 Model B include a Power Supply, MicroSD Card, USB-C to USB Converter and microHDMI to HDMI adapter.



Where can I get the Raspberry Pi 4 Model B in Australia?

  • You can get the Raspberry Pi 4 Model B from PiAustralia.com.au or www.littlebird.com.au



When was the Raspberry Pi 4 Model B released?

  • The Raspberry Pi 4 Model B was released on June 24th 2019.



Is there a Raspberry Pi 4 Model B Kit in Australia?

  • Raspberry Pi 4 Model B Kits are available in Australia from Little Bird and PiAustralia.



What is the latest revision of the Raspberry Pi 4 Model B?

  • As of June 24th, the latest revision of the Raspberry Pi 4 Model B is revision version 1.1



What is the pinout for the analogue Audio/Video Jack on the Raspberry Pi 4 Model B?

  • The Raspberry Pi 4 Model B uses a four pole TRRS (Tip, Ring, Ring, Sleeve) stero output and composite video port.
